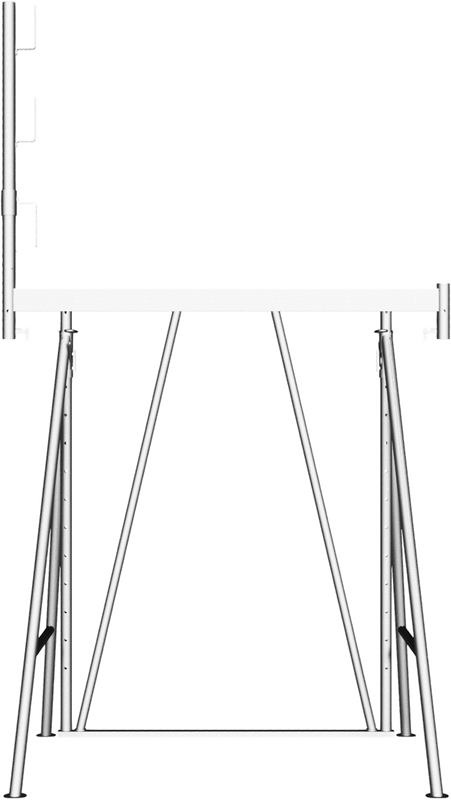

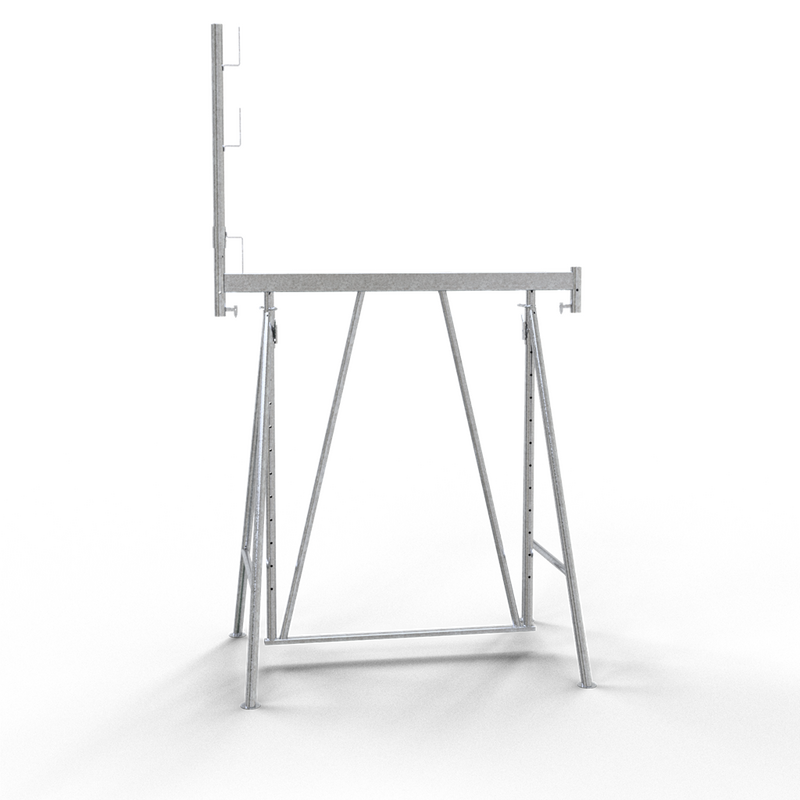

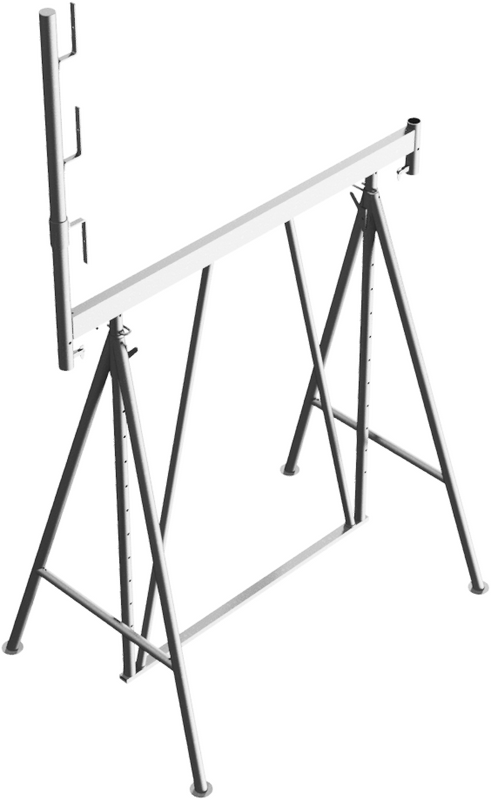

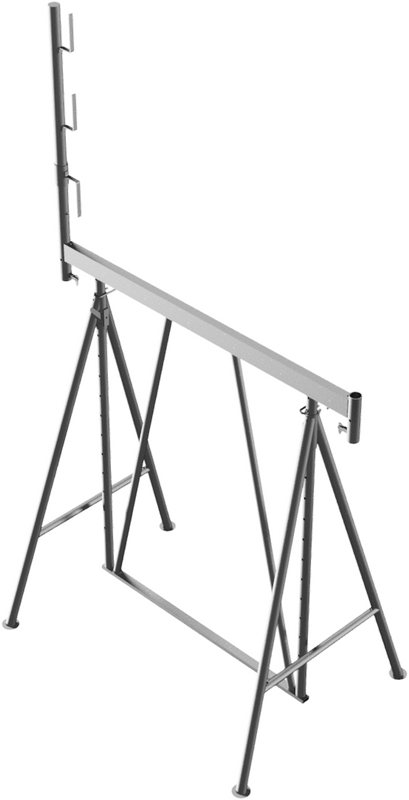

Folding jack „Universal“ U1500
very robust design with supporting cross tube of 80 mm x 40 mm square tube and
side welded tube socket for installation of railing posts (1 railing post is included
in the delivery) as back guard to protect from falling or for top mounted parts;
holders are welded to the bottom of the tube socket in which diagonal braces can
be installed; such braces are required as stiffeners from a scaffold height of 2.00 m
and higher (see part-no. 11271/11272 on page 81); both feet (of Ø 42 mm round
tube) can be turned and have 2 base plates each for high stability on any ground;
top frame with crossbar can be extended and fixed at several positions by a captive
hook, load can be set: 900 kg
Width: 1.50 m
Height: 1.70 - 3.00 m

The universal folding jacks from a height of 2.00 m have to
be braced diagonally (part-no. 11271 / 11272)
