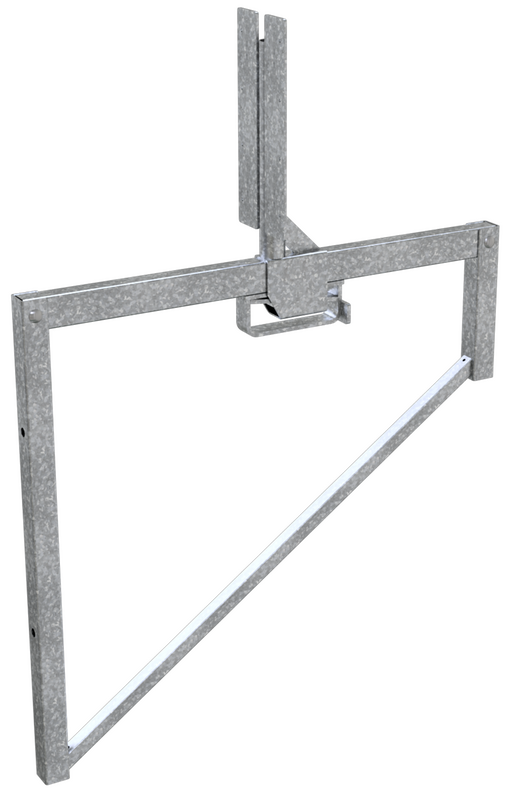

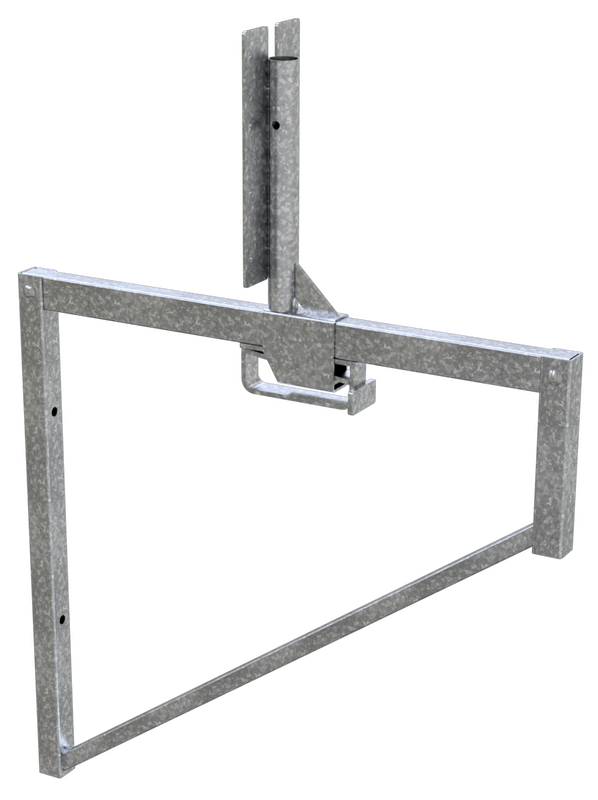

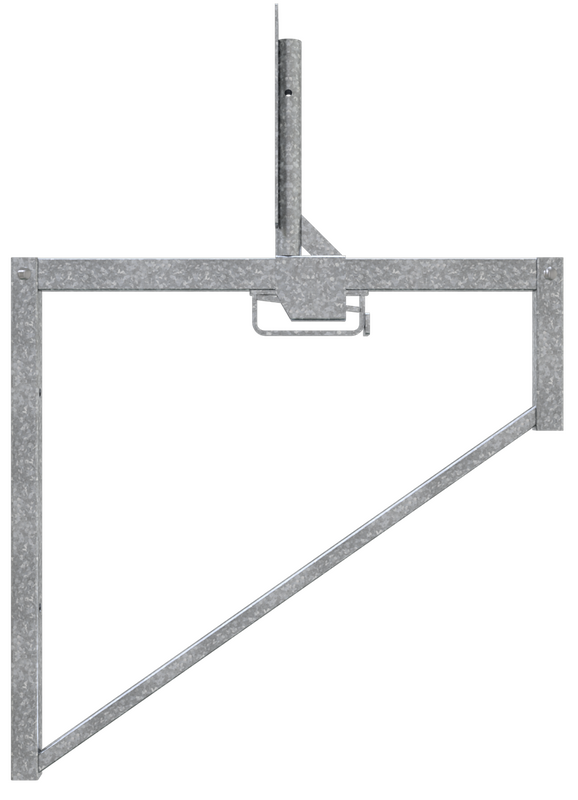

Formwork bracket

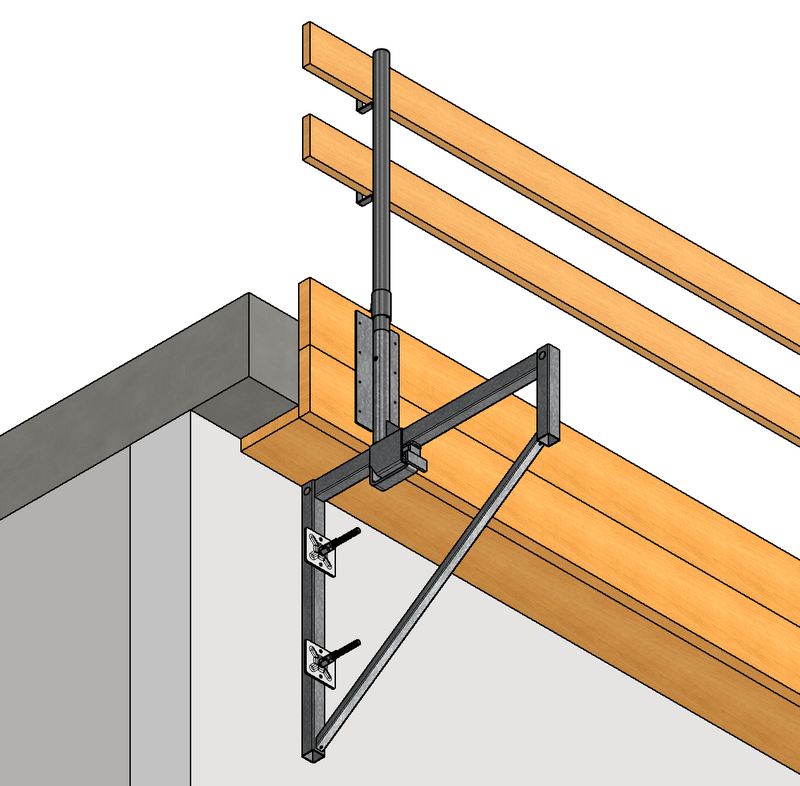

For slab edge formwork and slab cantilevers.

· infinitely adjustable from 100 -750 mm
· fixing of the formwork width by wedge locking device incl. mounting for guard-railing posts e.g. part-no. 11277VG, which may be used with toe boards to form a permissible system
· planks up to 350 mm can be attached as edge formwork
· to fix the formwork bracket, one or two threaded rolling rods are passed through the wall and bolted with plate nuts
· galvanized
