Item number	Length (mm)	Width (mm)	Height (mm)	Technical specifications	Weight		variant_1
20211	500	70	70	material: S235 JR surface: painted in RAL 8017	4.727	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2021.html?variant_1=565&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 1: 0.50 m - 0.80 m39.90 kN - 37.20 kN
20212	600	70	70	material: S235 JR surface: painted in RAL 8017	5.009	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2021.html?variant_1=566&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 1a: 0.60 m - 0.90 m39.90 kN - 34.10 kN
20213	800	70	70	material: S235 JR surface: painted in RAL 8017	5.573	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2021.html?variant_1=567&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 2: 0.80 m - 1.10 m39.50 kN - 29.40 kN
20214	1100	70	70	material: S235 JR surface: painted in RAL 8017	6.419	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2021.html?variant_1=564&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 3: 1.10 m - 1.40 m37.70 kN - 29.30 kN
20215	1400	70	70	material: S235 JR surface: painted in RAL 8017	7.265	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2021.html?variant_1=568&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 4: 1.40 m - 1.70 m31.70 kN - 26.50 kN

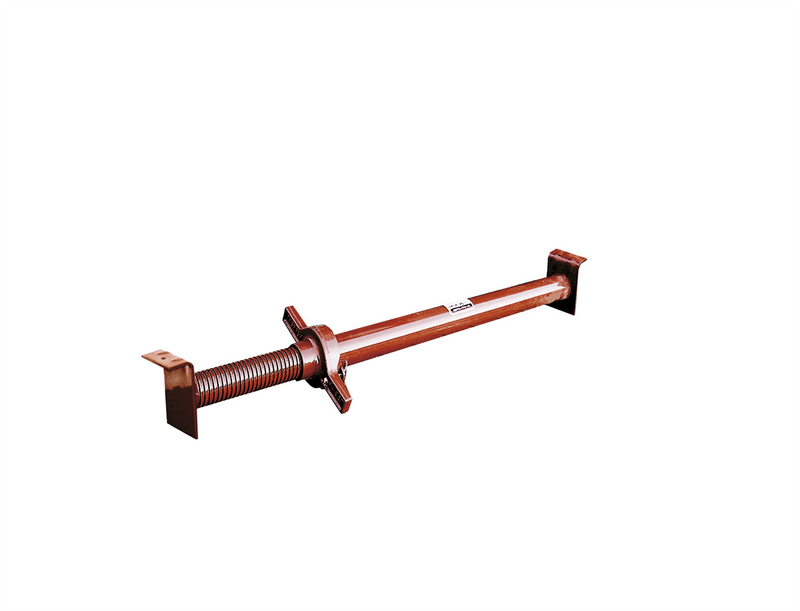

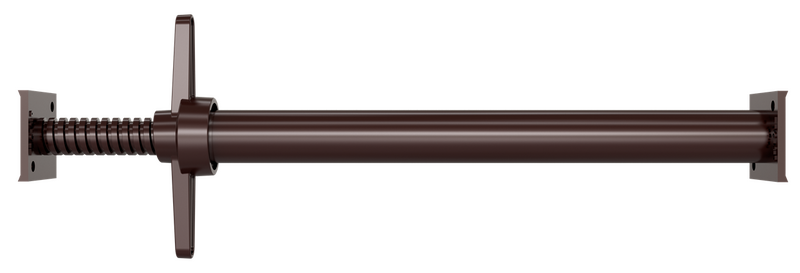

Trench shoring "Perfect"
Ø 32 mm

Article number: 20211

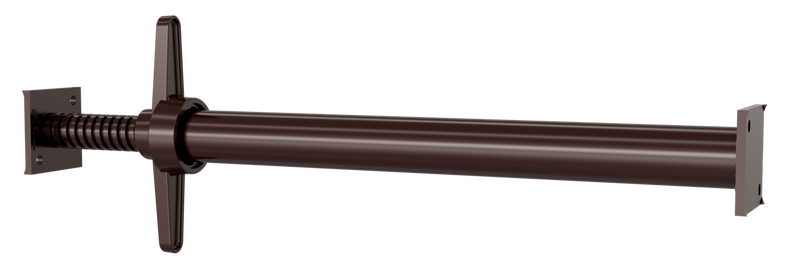

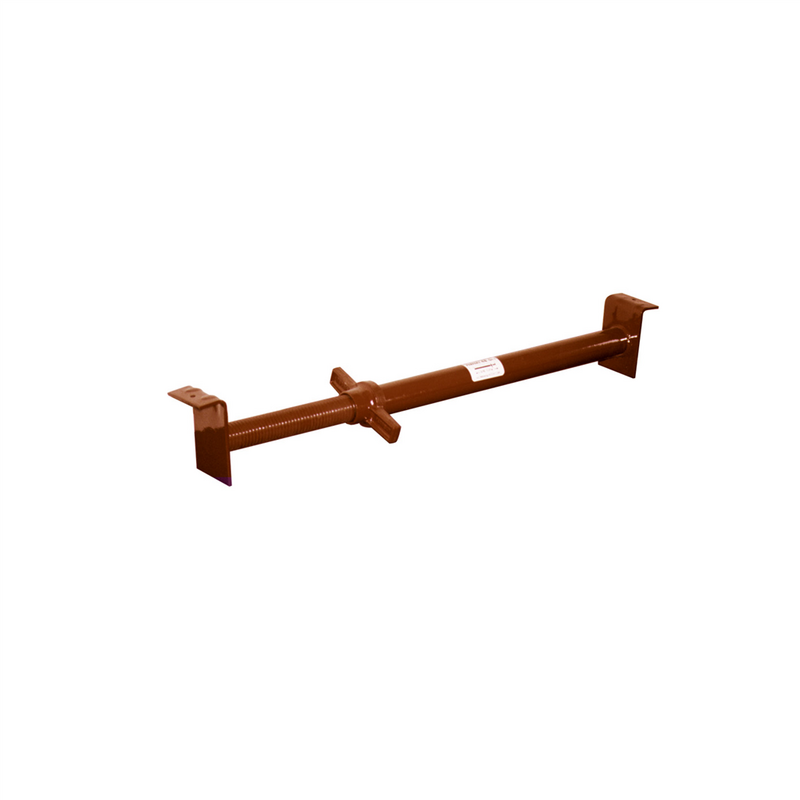

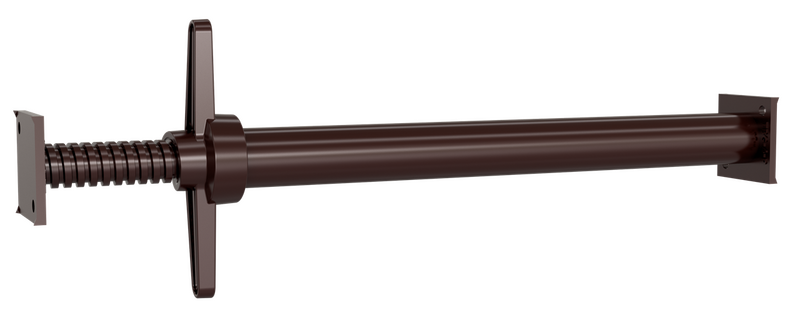

Trench shoring "Perfect" Ø 32 mm
for civil engineering use, for bracing and supporting canal walls, acc. to DIN 4124
with test label TBG-4P 32, spindle: Ø 32 mm, outer tube: Ø 42.4 mm with claw

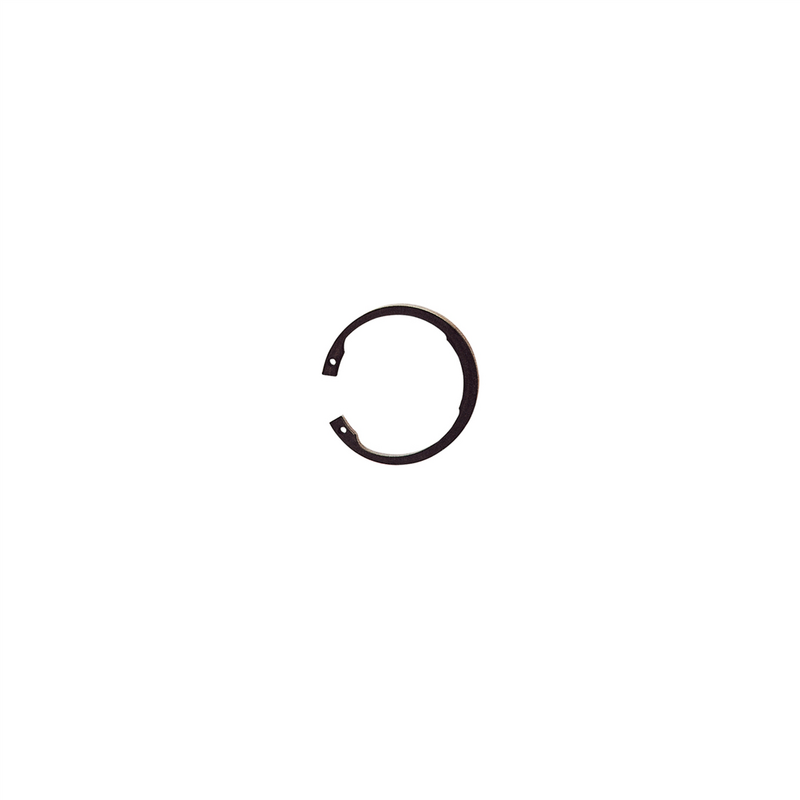

plates 70 mm x 70 mm on both sides, spindle and tube are firmly connected with
each other by a locking ring.
