Item number	Length (mm)	Width (mm)	Height (mm)		Technical specifications	Weight		variant_1
20231	700	150	100	Certified	material: S235 JR surface: painted in RAL 8017	8.296	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2023.html?variant_1=550&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 10.70 m - 1.17 m65.50 kN- 61.10 kN
20232	900	150	100	Certified	material: S235 JR surface: painted in RAL 8017	9.809	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2023.html?variant_1=551&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 20.90 m - 1.50 m65.50 kN- 59.90 kN
20233	1200	150	100	Certified	material: S235 JR surface: painted in RAL 8017	12.211	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2023.html?variant_1=552&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 31.20 m - 2.10 m60.10 kN- 51.70 kN

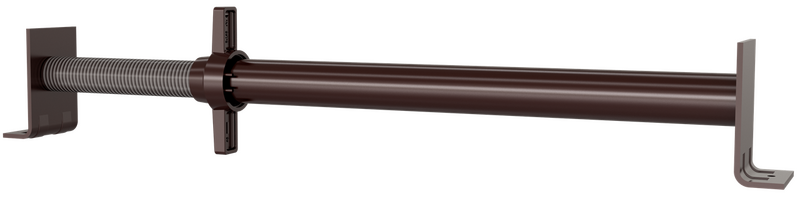

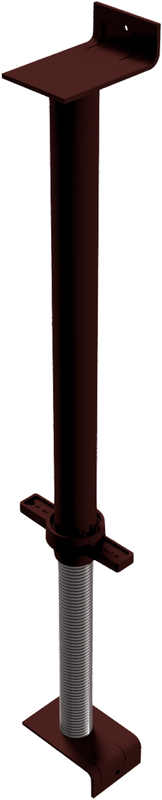

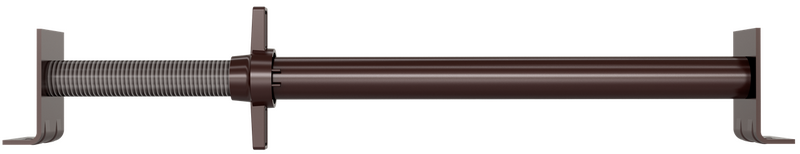

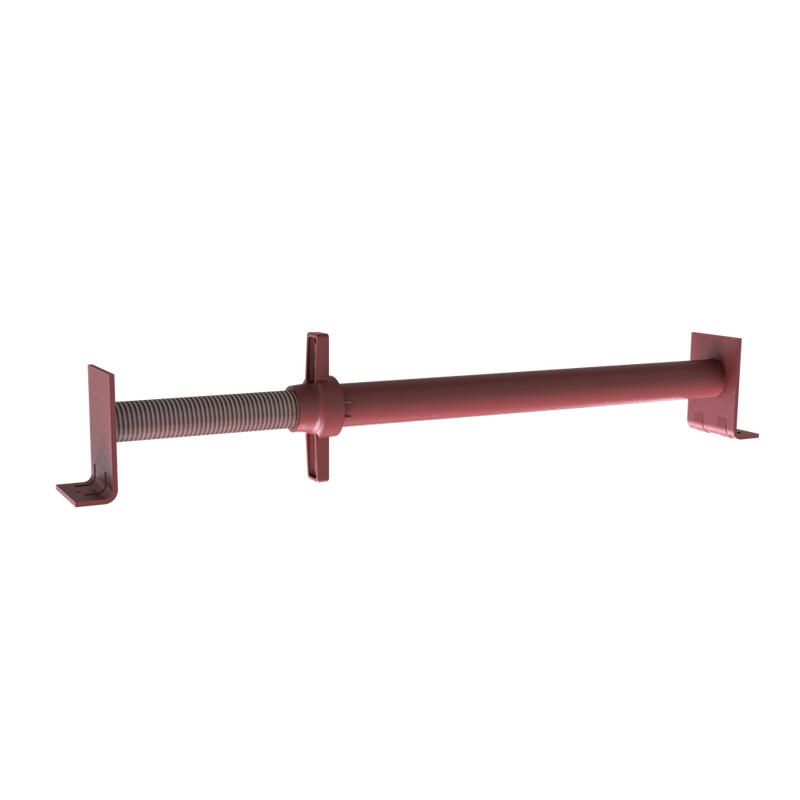

Trench shoring „Perfect“
Ø 48 mm

Article number: 20231

Trench shoring „Perfect“ Ø 48 mm
for civil engineering use, for bracing and supporting canal walls, acc. to DIN
4124 with test label TBG-4P 48, spindle: Ø 48.3 mm, outer tube: Ø 57 mm with
supporting angle 100 mm x 150 mm on both sides

To combine the spindle with tubes of different length, the ring can be opened a special tool. Spindle and
tube are firmly connected with each other by a locking ring.
