Item number	Length (mm)	Width (mm)	Height (mm)		Technical specifications	Weight		variant_1
20241	900	150	100	Certified	material: S235 JR surface: painted in RAL 8017	10.512	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2024.html?variant_1=612&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 10.90 m - 1.50 m100.00 kN - 100.00 kN
20242	1400	150	100	Certified	material: S235 JR surface: painted in RAL 8017	17.501	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2024.html?variant_1=613&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 21.40 m - 2.00 m100.00 kN - 96.90 kN
20243	1900	150	100	Certified	material: S235 JR surface: painted in RAL 8017	21.521	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2024.html?variant_1=614&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 31.90 m - 2.50 m98.80 kN - 83.90 kN
20244	2400	150	100	Certified	material: S235 JR surface: painted in RAL 8017	24.451	https://www.schake.com/en/products/construction-equipment-traffic-safety/infrastructure-building/trench-shoring/v2024.html?variant_1=615&variant_2=1&variant_3=1&variant_4=1&variant_5=1	Size 42.40 m - 3.00 m80.80 kN - 75.30 kN

Trench shoring „Perfect“
Ø 60 mm

Article number: 20241

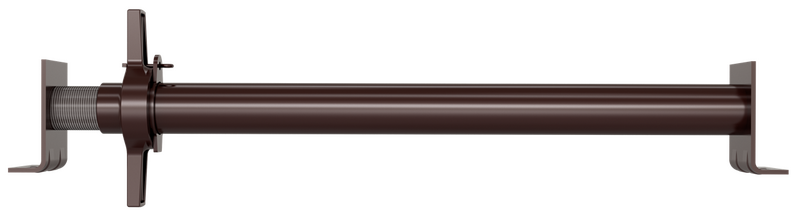

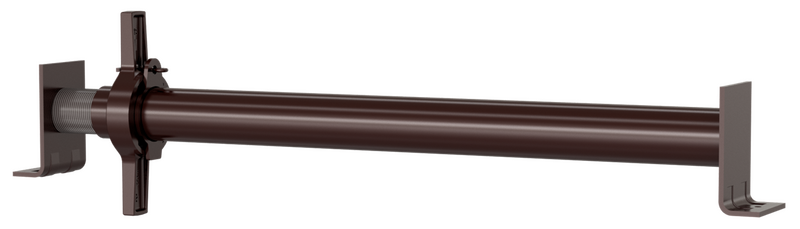

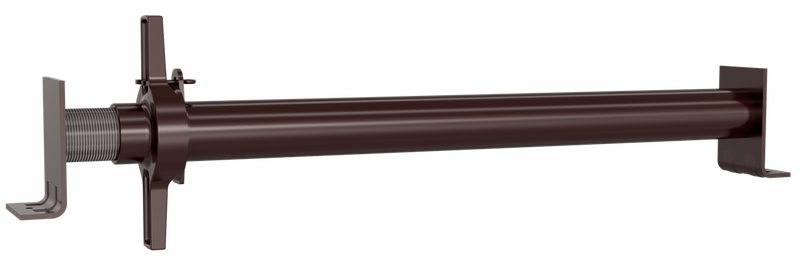

Trench shoring „Perfect“ Ø 60 mm
for civil engineering use, for bracing and supporting canal walls, acc. to DIN
4124 with test label TBG-4P 60, spindle: Ø 60 mm, outer tube: Ø 70 mm with
supporting angle 100 mm x 150 mm on both sides, brown painted

To combine the spindle with tubes of different length, the ring can be opened a special tool. Spindle and tube are firmly connected with each other by a locking ring.
