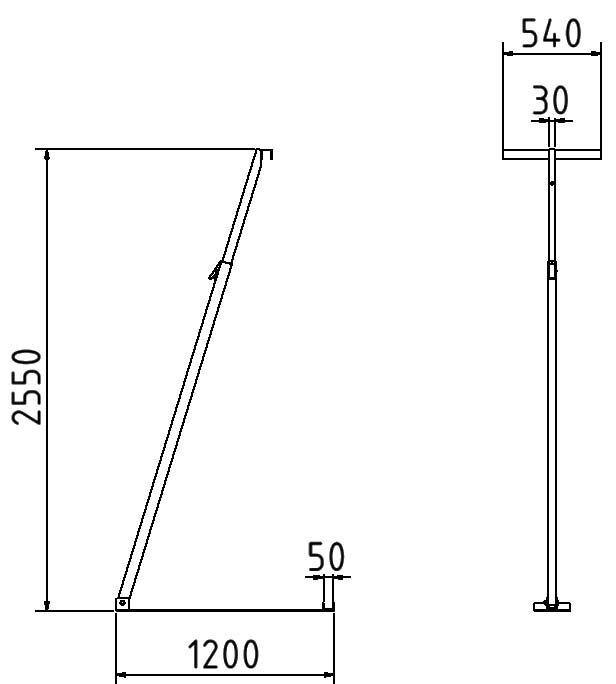

Item number	Length (mm)	Width (mm)	Height (mm)			Designated purpose	Technical specifications	Weight		variant_1	variant_2	variant_3	variant_4	variant_5
3B161	1750	1200	540	Combinable, Hot-dip galvanized			material: S235 JR surface: hot dipped galvanized For installation heights: 2000m	18.02	https://www.schake.com/en/products/construction-equipment-traffic-safety/mobile-fence/wooden-mobile-fence/v3b16.html?variant_1=3470&variant_2=1&variant_3=1&variant_4=1&variant_5=1	For mounting heights: 2000 mm - 2500 mm
3B162	800	800	540	Combinable			material: S235 JR surface: hot-dip galvanizing according to DIN ISO 1461	15.94	https://www.schake.com/en/products/construction-equipment-traffic-safety/mobile-fence/wooden-mobile-fence/v3b16.html?variant_1=3471&variant_2=1&variant_3=1&variant_4=1&variant_5=1	For mounting heights: 800 mm - 1300 mm

Wooden fence posts
Type Light

Article number: 3B161

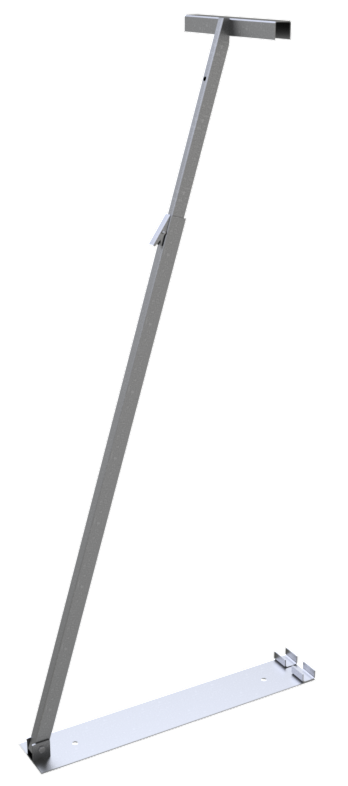

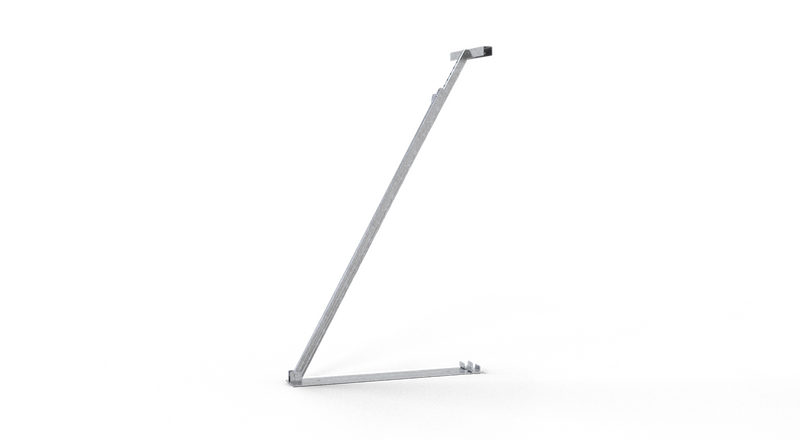

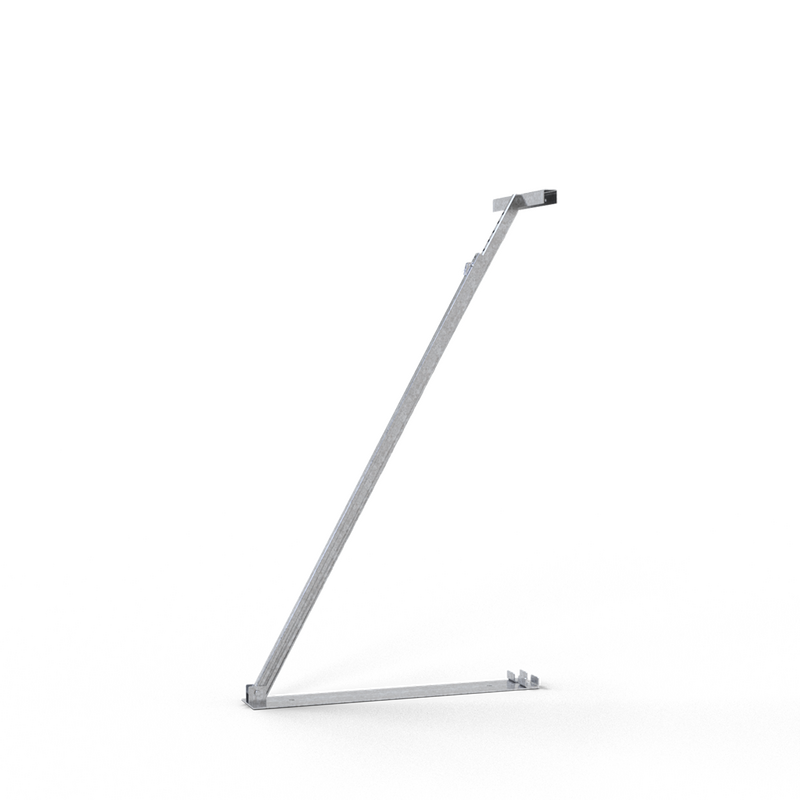

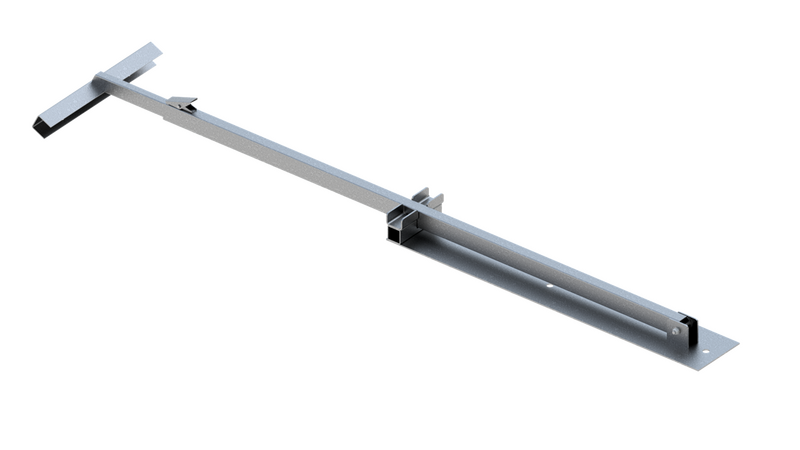

Wooden mobile fence stand type light

Provides the wooden fence with secure and lasting stability.

·wooden mobile fence stand for wall elements up to 40 mm
·by simply inserting the wall elements into the U-rails welded at the top and bottom
·the wooden fence is erected vertically
·screwing of the wooden elements with the U-rails serves for a safe and permanent installation
·stand must be secured with ballast weights (e.g. concrete feet, part-no. 3F100)
·galvanized
