Item number	Length (mm)	Width (mm)	Height (mm)			Designated purpose	Technical specifications	Weight		variant_1	variant_2	variant_3	variant_4	variant_5
31NOX-0	850	400	120	Combinable			Material: PVC Recycling	30	https://www.schake.com/en/products/construction-equipment-traffic-safety/traffic-safety/base-plates/v31nox.html?variant_1=2925&variant_2=1&variant_3=1&variant_4=1&variant_5=1	without insert for BASt reversible beacons
31NOX	850	410	110	Certified, Combinable			Material: PVC Recycling with pockets: 1 x 40 x 40 mm, 3 x 40 x 40 mm and 2 x Ø 42 mm combined, 1 x Ø 48 mm	30.2	https://www.schake.com/en/products/construction-equipment-traffic-safety/traffic-safety/base-plates/v31nox.html?variant_1=2926&variant_2=1&variant_3=1&variant_4=1&variant_5=1	with insert for BASt reversible beacons

TL base plate
to K1 type NOX
30 Kg

Article number: 31NOX-0

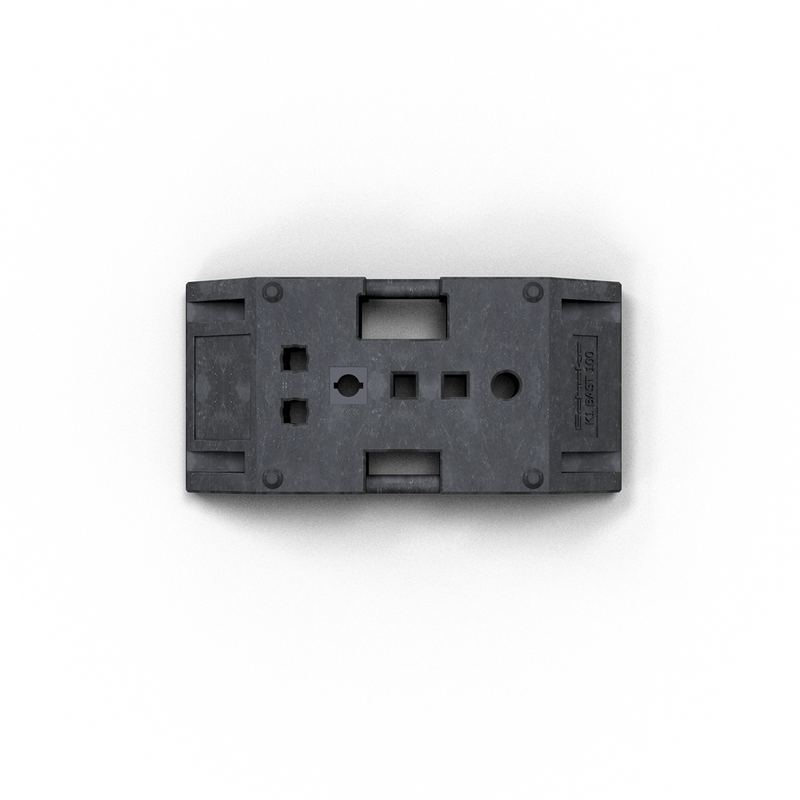

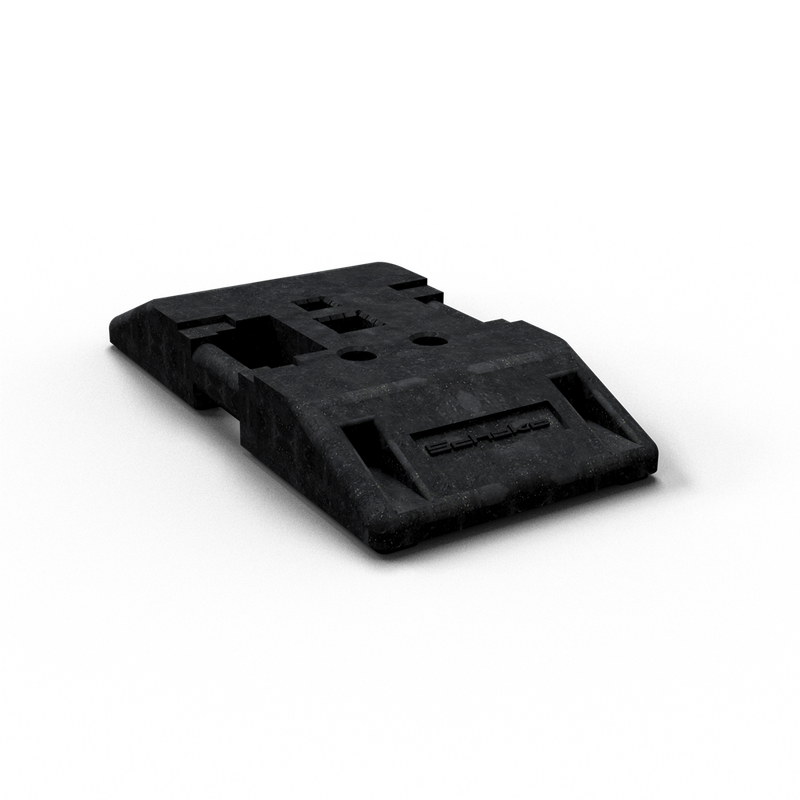

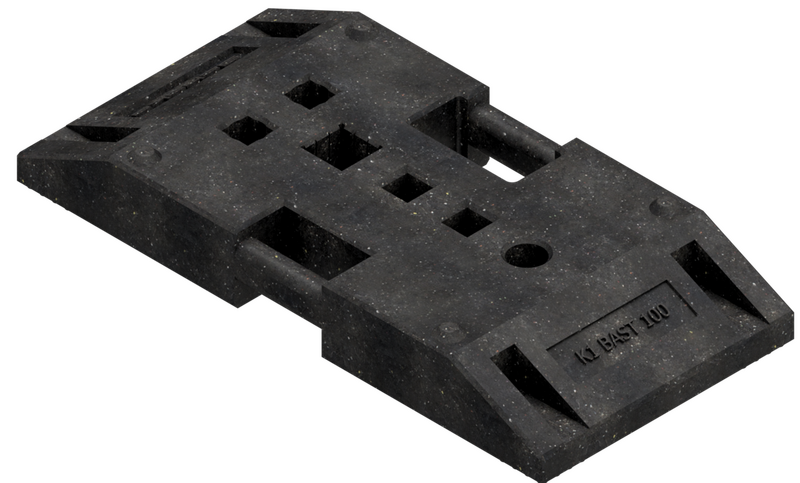

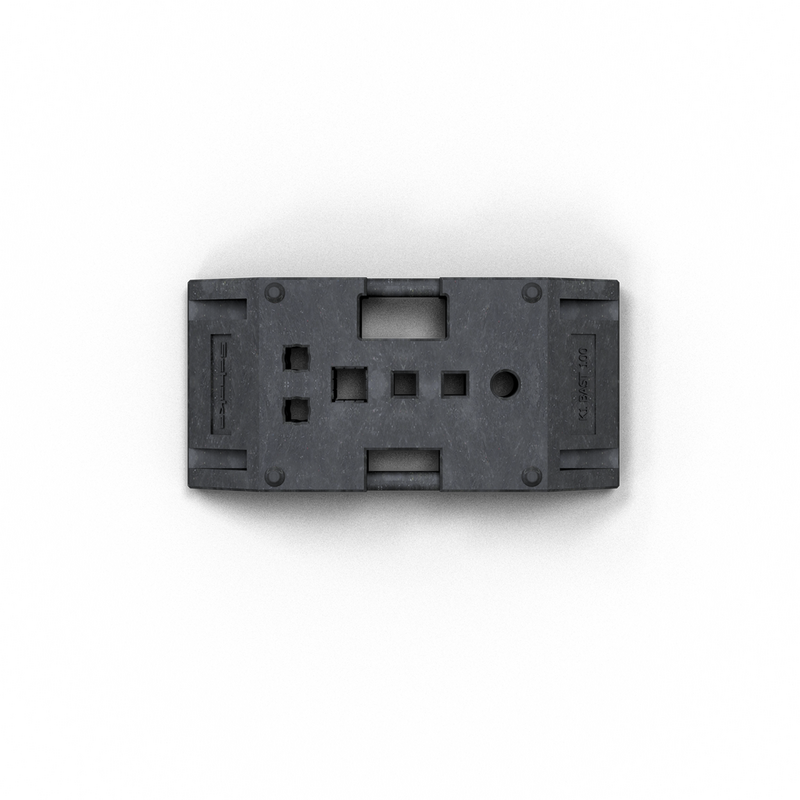

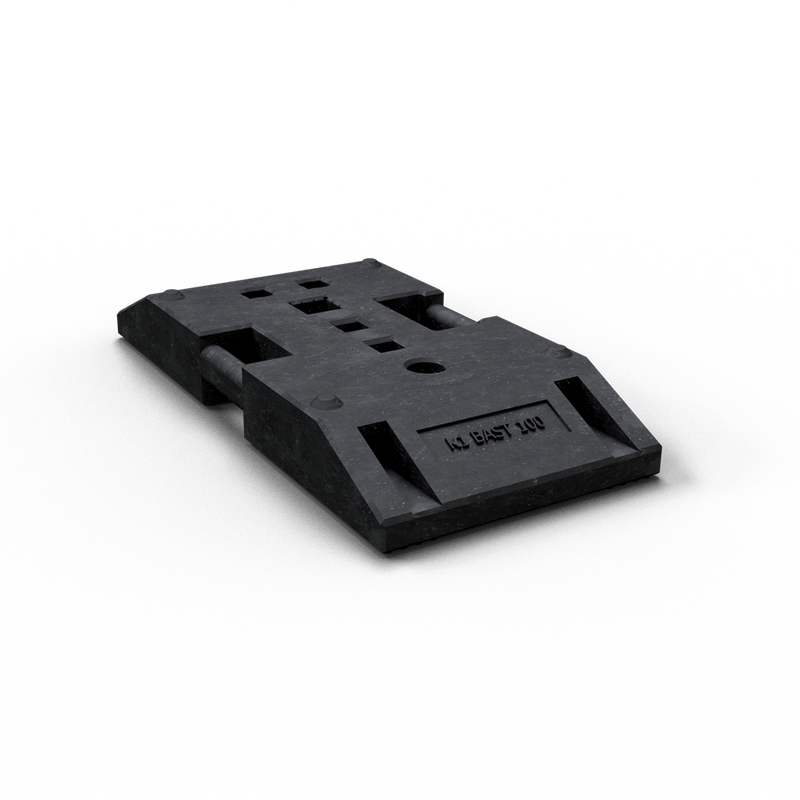

Base plate K1 type NOX

Insert pockets:
1x 40 x 40 mm
1x 60 x 60 mm
3x 40 x 40 mm and Ø 42 mm combined
1x Ø 48 mm

Dimensions:
Width: 410 mm
length: 850 mm
Height: 120 mm

Version:
recycling black, 30 Kg

Tested according to:
TL installation devices identification K1,
complies with the regulations of ZTV-SA

Advertising space for base plates
Our base plates can be customised for your advertising purposes. You have the choice of whether you want to provide the base plate
with a logo plate or an imprinted logo. These options serve as a cost-effective advertising space that leaves a lasting impression.
Color and logo options on request.
