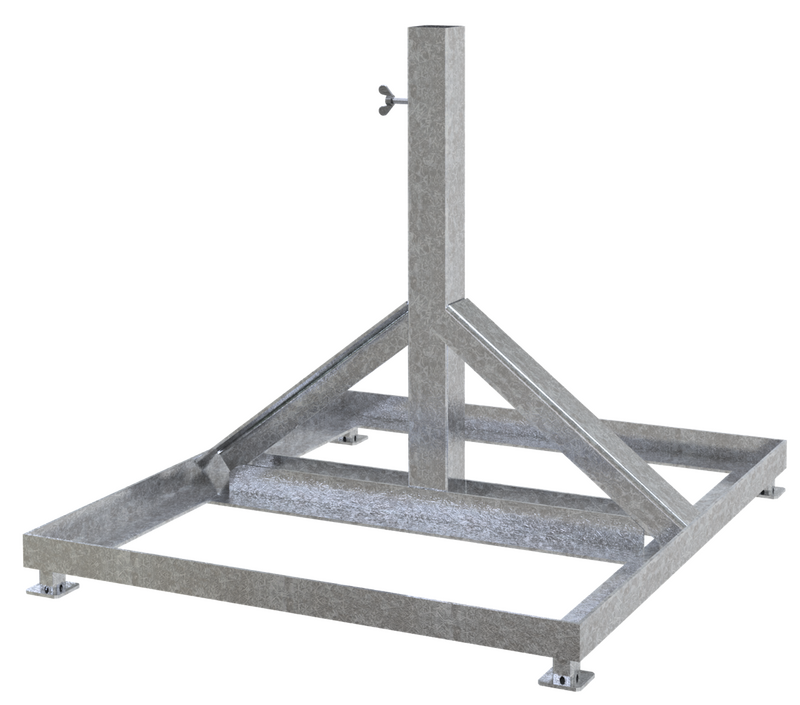

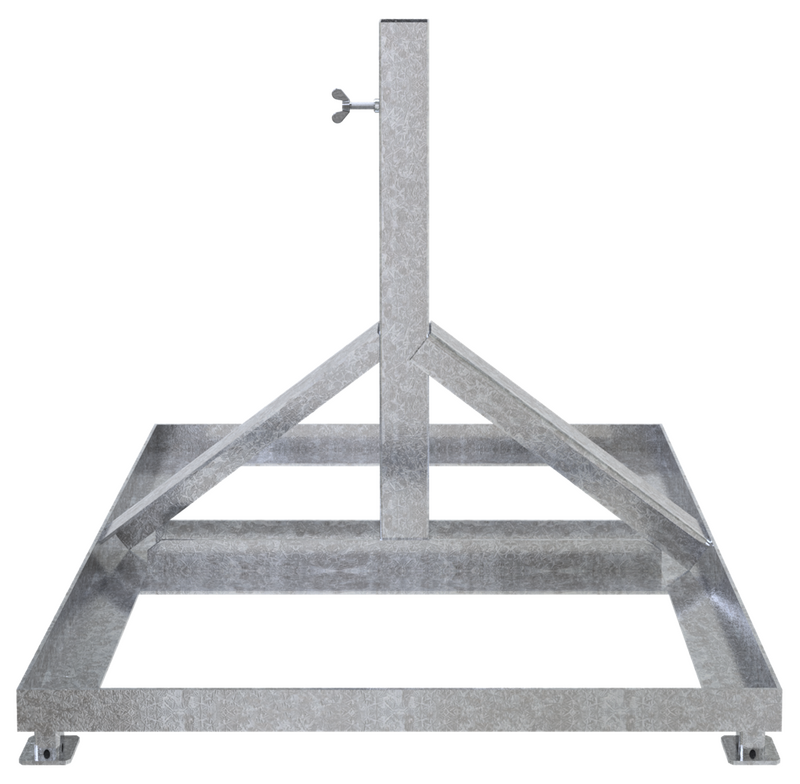

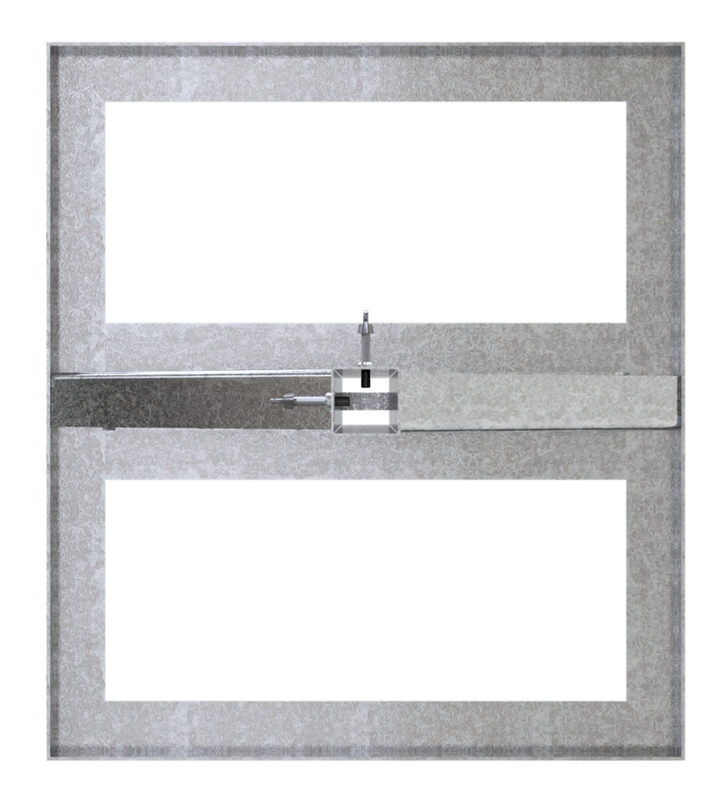

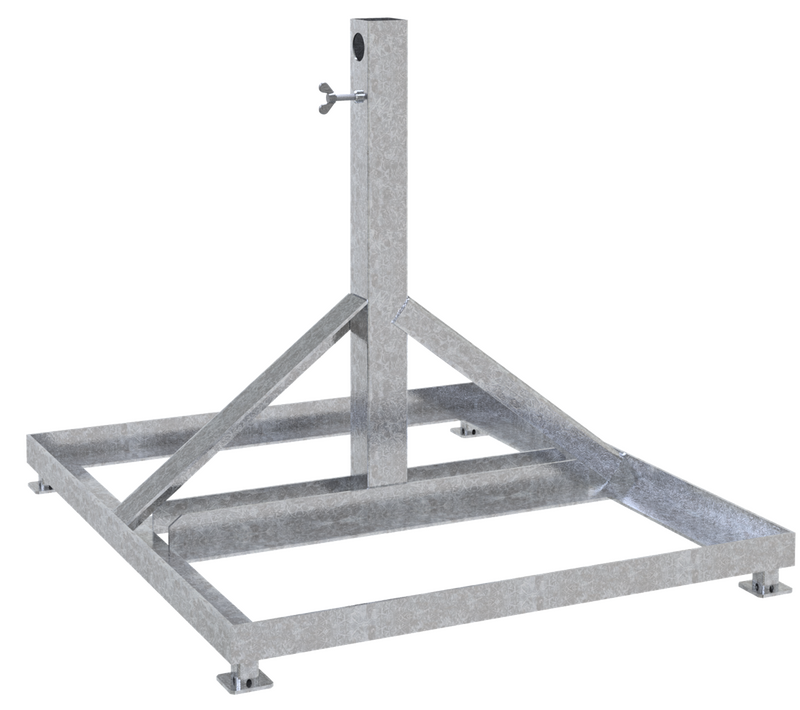

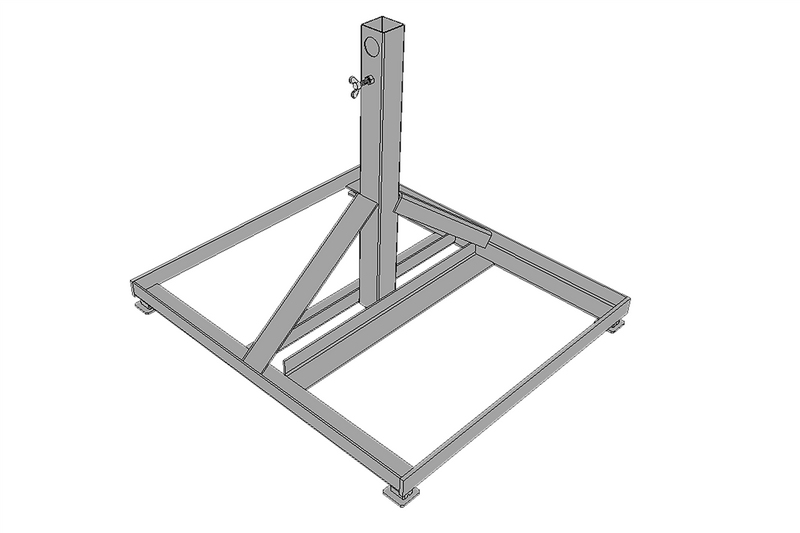

Sign post according to TL - type Crossing

·takes shaft tubes 40 x 40 mm + 60 x 60 mm
·are fixed with 2 set screws
·can be craned
·stable due to 4 feet
·can be stacked with 4 K1 foot plates (28 kg / 30 kg) per side
·the lower foot plates are fixed by frames
·dimensions: 880 x 990 mm
·weight class K8
·only TL is fulfilled when hold-down device 35301NH is used

Please refer to the ZTV-SA for installation instructions.
The shown base plates are not part of the delivery.
