All variants of this product:
| Item number | Length (mm) | Width (mm) | Height (mm) | Designated purpose | Technical specifications | Weight | variant_1 | variant_2 | variant_3 | variant_4 | variant_5 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

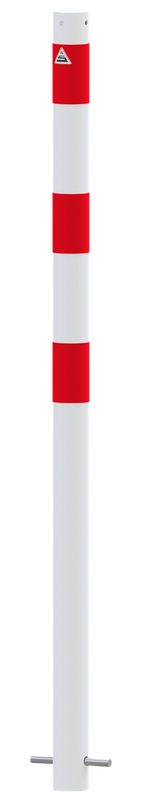

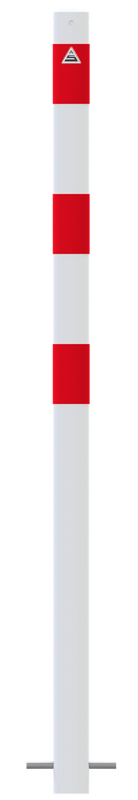

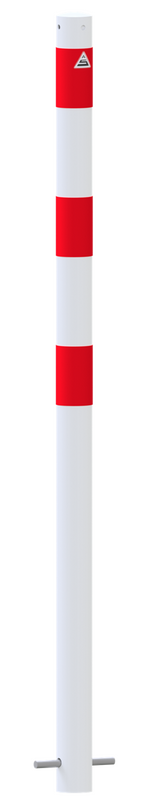

| 4L60BSRO | 1300 | 60 | 60 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A |
4.98 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=3997&variant_2=3998&variant_3=1355&variant_4=1&variant_5=1 | Ø 60 mm | hot-dip galvanized and white powder-coated with 3 red reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L60SRO | 1300 | 60 | 60 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A |
4.98 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=3997&variant_2=3999&variant_3=1355&variant_4=1&variant_5=1 | Ø 60 mm | hot-dip galvanized with 3 red reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L60SBL | 1300 | 60 | 60 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A |
4.98 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=3997&variant_2=4000&variant_3=1355&variant_4=1&variant_5=1 | Ø 60 mm | hot-dip galvanized with 3 blue reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L60BSBL | 1300 | 60 | 60 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A |
4.98 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=3997&variant_2=4001&variant_3=1355&variant_4=1&variant_5=1 | Ø 60 mm | hot-dip galvanized and white powder-coated with 3 blue reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L60SGR | 1300 | 60 | 60 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A |
4.98 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=3997&variant_2=4002&variant_3=1355&variant_4=1&variant_5=1 | Ø 60 mm | hot-dip galvanized with 3 green reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L60BSGR | 1300 | 60 | 60 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A |
4.98 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=3997&variant_2=4004&variant_3=1355&variant_4=1&variant_5=1 | Ø 60 mm | hot-dip galvanized and white powder-coated with 3 green reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L76SBL | 1300 | 76 | 76 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A |
7.02 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=4003&variant_2=4000&variant_3=1355&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized with 3 blue reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L76BSGR | 1300 | 76 | 76 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A |
7.02 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=4003&variant_2=4004&variant_3=1355&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized and white powder-coated with 3 green reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L76SGR | 1300 | 76 | 76 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A |
7.02 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=4003&variant_2=4002&variant_3=1355&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized with 3 green reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L76BSRO | 1300 | 76 | 76 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A |
7.02 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=4003&variant_2=3998&variant_3=1355&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized and white powder-coated with 3 red reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L76BSBL | 1300 | 76 | 76 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A |
7.02 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=4003&variant_2=4001&variant_3=1355&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized and white powder-coated with 3 blue reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L76SRO | 1300 | 76 | 76 | Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A |
7.02 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=4003&variant_2=3999&variant_3=1355&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized with 3 red reflective strips foil type RA1/A | for casting in concrete | |||||
| 4L76PBSGR | 900 | 150 | 100 | 5.18 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=1386&variant_2=4004&variant_3=2200&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized and white powder-coated with 3 green reflective strips foil type RA1/A | To be fixed by plugs | ||||||
| 4L76PBSBL | 900 | 150 | 100 | 5.18 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=1386&variant_2=4009&variant_3=2200&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized and white powder-coated with 3 blue reflective strips foil type RA1/A | To be fixed by plugs | ||||||
| 4L76PBSRO | 900 | 150 | 100 | 5.18 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=1386&variant_2=4011&variant_3=2200&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized and white powder-coated with 3 red reflective strips foil type RA1/A | To be fixed by plugs | ||||||
| 4L76PSGR | 900 | 150 | 100 | 5.18 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=1386&variant_2=4002&variant_3=2200&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized with 3 green reflective strips foil type RA1/A | To be fixed by plugs | ||||||
| 4L76PSBL | 900 | 150 | 100 | 5.18 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=1386&variant_2=4007&variant_3=2200&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized with 3 blue reflective strips foil type RA1/A | To be fixed by plugs | ||||||
| 4L76PSRO | 900 | 150 | 100 | 5.18 | https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l.html?variant_1=1386&variant_2=4008&variant_3=2200&variant_4=1&variant_5=1 | Ø 76 mm | hot-dip galvanized with 3 red reflective strips foil type RA1/A | To be fixed by plugs |
