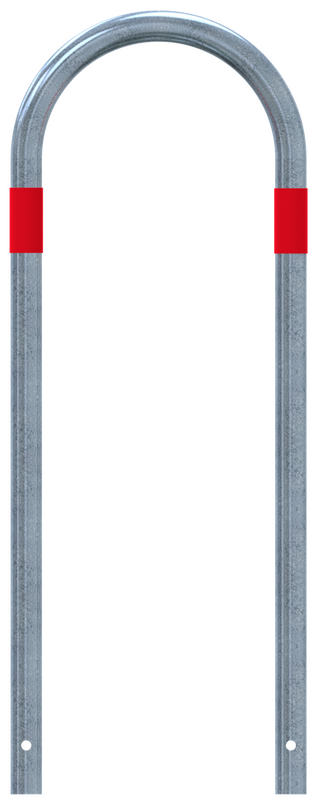

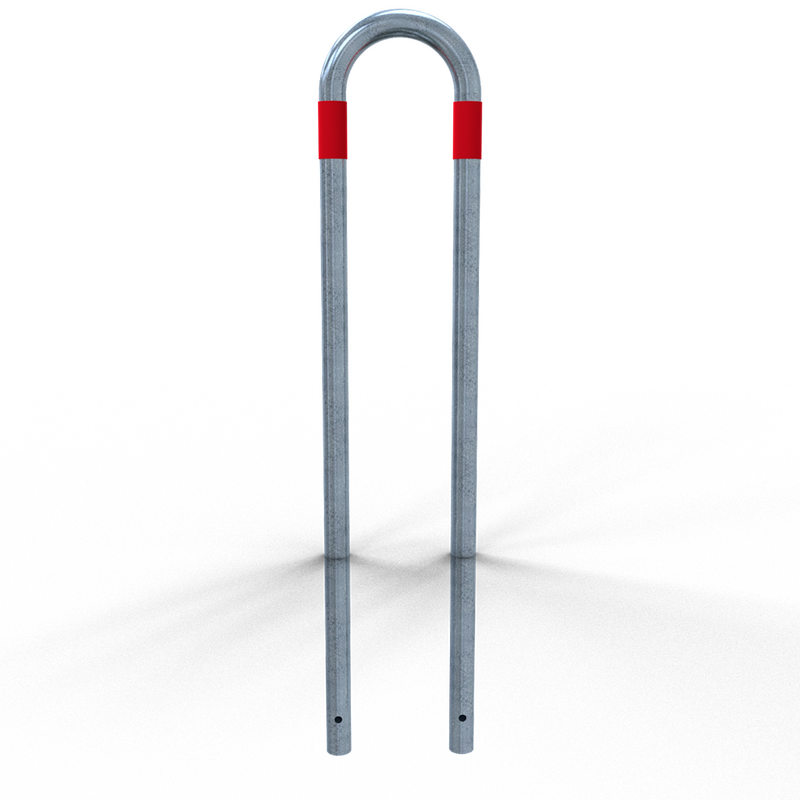

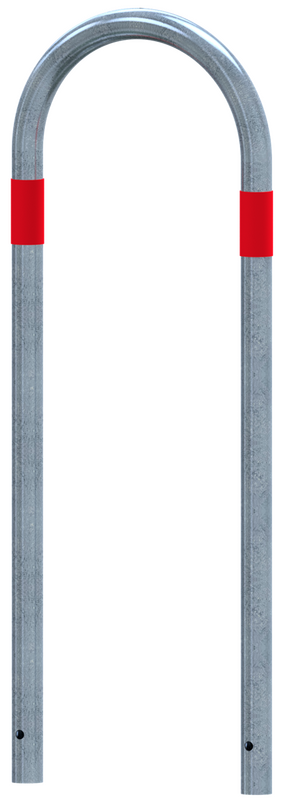

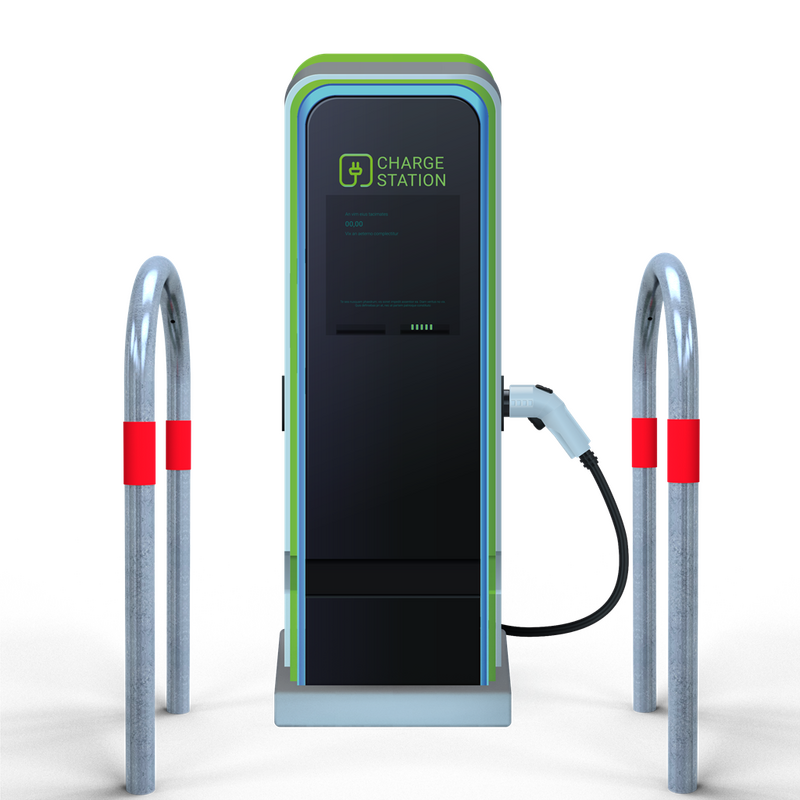

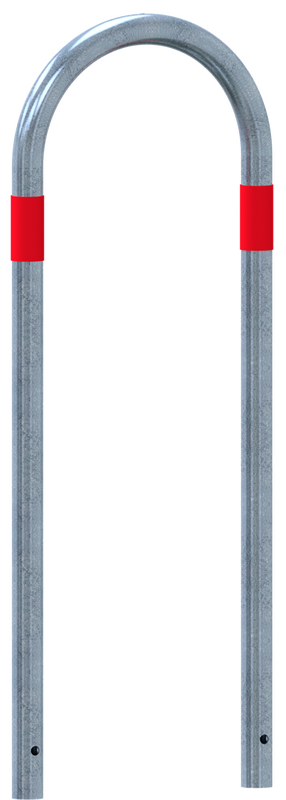

E-charging station protection

Item number	Length (mm)	Width (mm)	Height (mm)	Technical specifications	Weight		variant_1	variant_2
4L48_046BSRO	1200	460	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A	7.32	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4013&variant_2=4014&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 460mm, total height: 1200mm	hot-dip galvanized and white powder-coated with red reflective stripes foil type RA1/A
4L48_70SRO	1400	300	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A	8.19	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4015&variant_2=4016&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 300mm, total height: 1400mm	hot-dip galvanized with red reflective strips foil type RA1/A
4L48_70SGR	1400	300	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A	8.19	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4015&variant_2=4017&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 300mm, total height: 1400mm	hot-dip galvanized with green reflective strips foil type RA1/A
4L48_046SGR	1200	460	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A	7.32	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4013&variant_2=4017&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 460mm, total height: 1200mm	hot-dip galvanized with green reflective strips foil type RA1/A
4L48_70BSRO	1400	300	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A	8.19	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4015&variant_2=4014&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 300mm, total height: 1400mm	hot-dip galvanized and white powder-coated with red reflective stripes foil type RA1/A
4L48_70BSBL	1400	300	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A	8.19	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4015&variant_2=4018&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 300mm, total height: 1400mm	hot-dip galvanized and white powder-coated with blue reflective stripes foil type RA1/A
4L48_70BSGR	1400	300	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A	8.19	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4015&variant_2=4019&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 300mm, total height: 1400mm	hot-dip galvanized and white powder-coated with green reflective stripes foil type RA1/A
4L48_046SRO	1200	460	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A	7.32	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4013&variant_2=4016&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 460mm, total height: 1200mm	hot-dip galvanized with red reflective strips foil type RA1/A
4L48_046SBL	1200	460	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A	7.32	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4013&variant_2=4020&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 460mm, total height: 1200mm	hot-dip galvanized with blue reflective strips foil type RA1/A
4L48_70SBL	1400	300	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 with foil RA1/A	8.19	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4015&variant_2=4020&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 300mm, total height: 1400mm	hot-dip galvanized with blue reflective strips foil type RA1/A
4L48_046BSGR	1200	460	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A	7.32	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4013&variant_2=4019&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 460mm, total height: 1200mm	hot-dip galvanized and white powder-coated with green reflective stripes foil type RA1/A
4L48_046BSBL	1200	460	48	Material: S235 JR Surface finish: Hot-dip galvanizing according to DIN ISO 1461 and coated with foil RA1/A	7.32	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4013&variant_2=4018&variant_3=1&variant_4=1&variant_5=1	for casting in concrete, total width: 460mm, total height: 1200mm	hot-dip galvanized and white powder-coated with blue reflective stripes foil type RA1/A
4L48_70PSRO	1000	300	48		7.26	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4155&variant_2=4027&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 300mm, total height: 1000mm	hot-dip galvanized with red reflective strips foil type RA1/A
4L48_70PBSBL	1000	300	48		7.26	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4155&variant_2=4009&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 300mm, total height: 1000mm	hot-dip galvanized and white powder-coated with 3 blue reflective strips foil type RA1/A
4L48_70PBSRO	1000	300	48		7.26	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4155&variant_2=4011&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 300mm, total height: 1000mm	hot-dip galvanized and white powder-coated with 3 red reflective strips foil type RA1/A
4L48_70PSGR	1000	300	48		7.26	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4155&variant_2=4025&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 300mm, total height: 1000mm	hot-dip galvanized with green reflective strips foil type RA1/A
4L48_70PSBL	1000	300	48		7.26	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4155&variant_2=4031&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 300mm, total height: 1000mm	hot-dip galvanized with 3 blue reflective strips foil type RA1/A
4L48_70PBSGR	1000	300	48		7.26	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4155&variant_2=4006&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 300mm, total height: 1000mm	hot-dip galvanized and white powder-coated with 3 green reflective strips foil type RA1/A
4L48_046PBSBL	1000	460	48		7.52	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4154&variant_2=4001&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 460mm, total height: 1000mm	hot-dip galvanized and white powder-coated with 3 blue reflective strips foil type RA1/A
4L48_046PBSGR	1000	460	48		7.52	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4154&variant_2=4006&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 460mm, total height: 1000mm	hot-dip galvanized and white powder-coated with 3 green reflective strips foil type RA1/A
4L48_046PBSRO	1000	460	48		7.52	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4154&variant_2=4011&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 460mm, total height: 1000mm	hot-dip galvanized and white powder-coated with 3 red reflective strips foil type RA1/A
4L48_046PSBL	1000	460	48		7.52	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4154&variant_2=4031&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 460mm, total height: 1000mm	hot-dip galvanized with 3 blue reflective strips foil type RA1/A
4L48_046PSGR	1000	460	48		7.52	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4154&variant_2=4025&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 460mm, total height: 1000mm	hot-dip galvanized with green reflective strips foil type RA1/A
4L48_046PSRO	1000	460	48		7.52	https://www.schake.com/en/products/urban-equipment/barrier-elements/e-charging-station-protection/v4l4.html?variant_1=4154&variant_2=4027&variant_3=1&variant_4=1&variant_5=1	to be fixed by plugs, total width: 460mm, total height: 1000mm	hot-dip galvanized with red reflective strips foil type RA1/A
