Item number	Length (mm)	Width (mm)	Height (mm)			Designated purpose	Technical specifications	Weight		variant_1	variant_2	variant_3	variant_4	variant_5
417_31B	3000	490	70	Hot-dip galvanized			material: S235 JR surface: hot dipped galvanized and powder coated	42.92	https://www.schake.com/en/products/urban-equipment/barrier-elements/height-restriction-barriers/v417_31b.html?variant_1=1645&variant_2=1&variant_3=1&variant_4=1&variant_5=1	total width: 3000 mm
417_41B	4000	490	70	Hot-dip galvanized			material: S235 JR surface: hot dipped galvanized and powder coated	46.58	https://www.schake.com/en/products/urban-equipment/barrier-elements/height-restriction-barriers/v417_31b.html?variant_1=1646&variant_2=1&variant_3=1&variant_4=1&variant_5=1	total width: 4000 mm

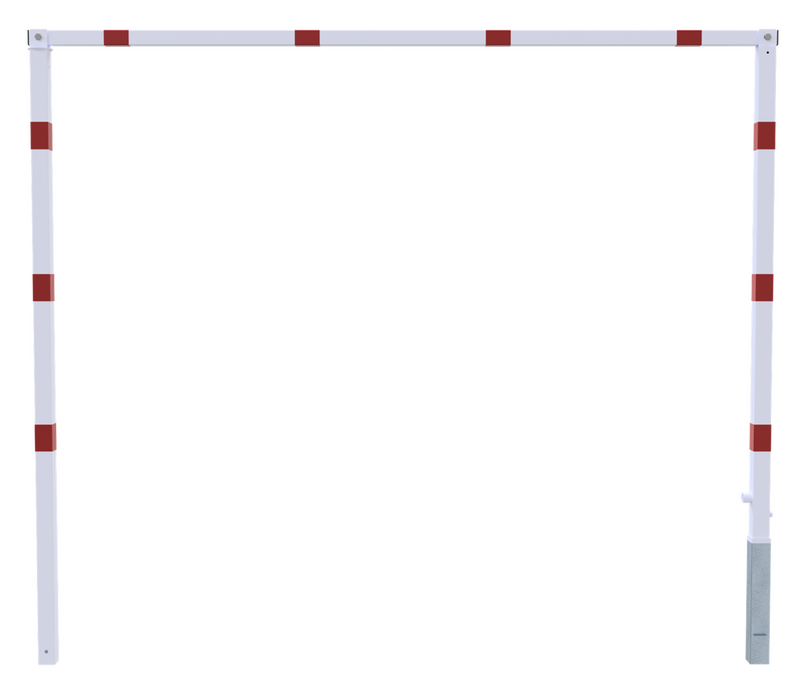

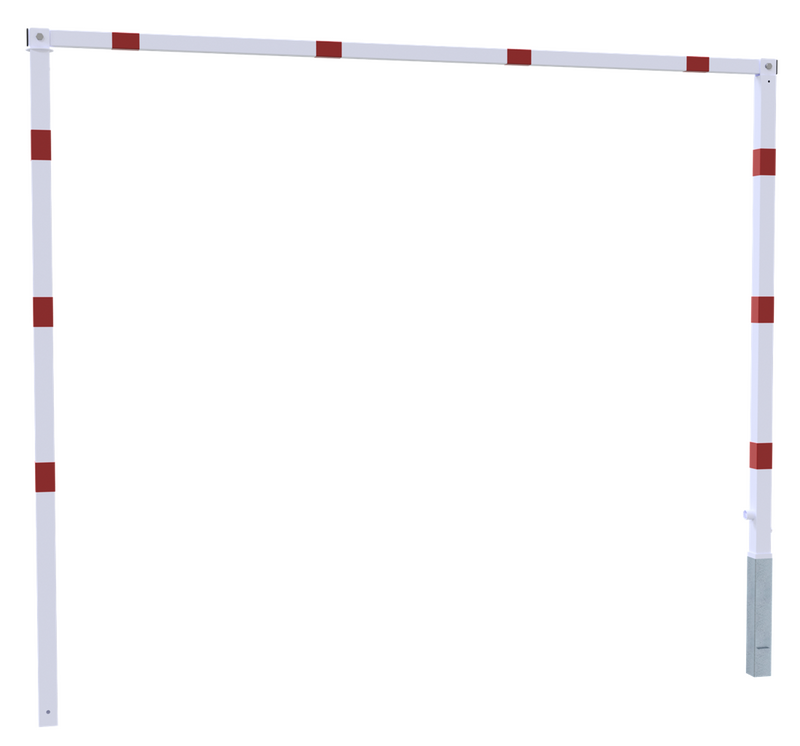

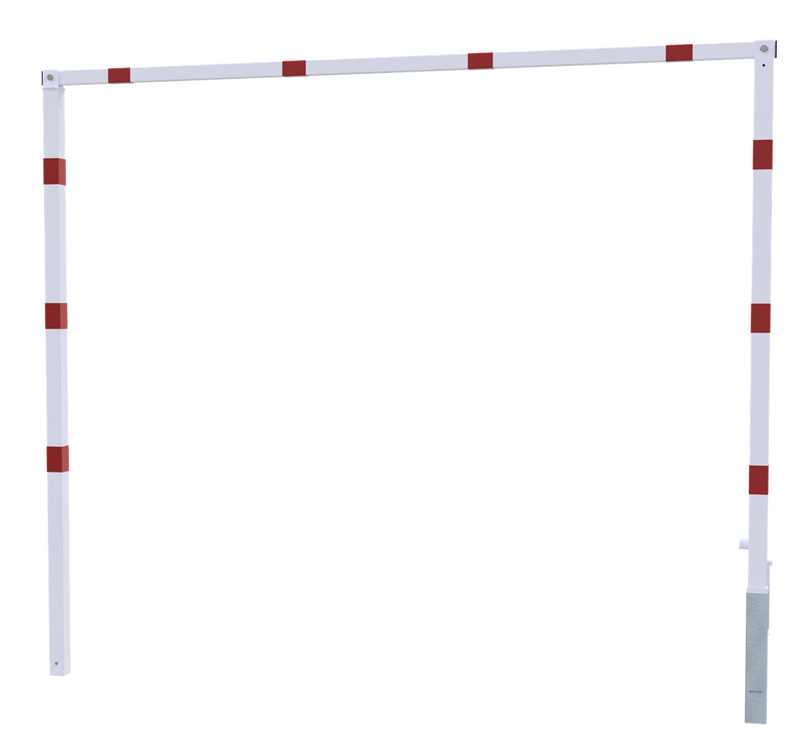

Height restriction barriers
pivotable
for casting in concrete

Article number: 417_31B

Height restriction barriers pivotable
hot-dip galvanized and white
coated with red reflecting
stripes
for casting in concrete

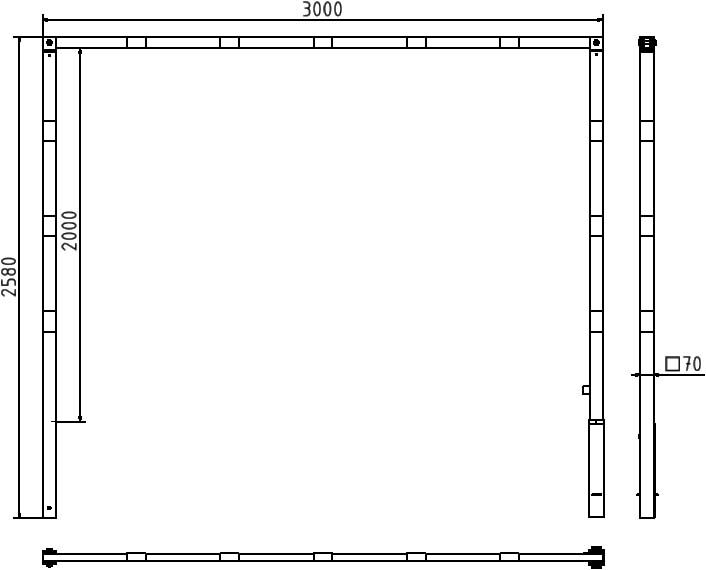

1 post 70 x 70 mm square tube, stationary, for casting in concrete,
Total height: approx. 2500 mm
1 post 70 x 70 mm square tube, removable, with triangular locking mechanism
1 ground socket 80 x 80 mm, square tube 500 mm
1 cross bar 60 x 40 mm
clear height approx. 2000 mm
