All variants of this product:
| Item number | Length (mm) | Width (mm) | Height (mm) | Designated purpose | Technical specifications | Weight | variant_1 | variant_2 | variant_3 | variant_4 | variant_5 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

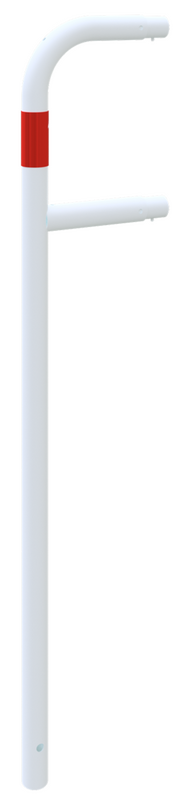

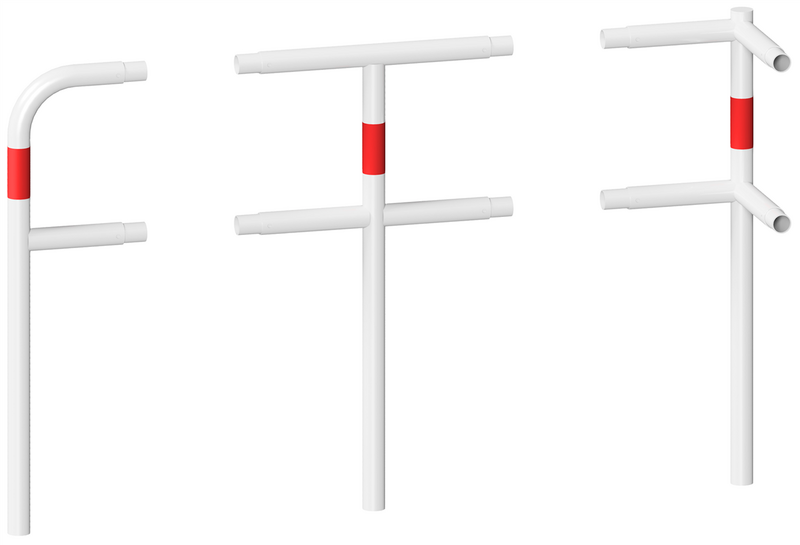

| 448_80 | 1000 | 250 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
5.46 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1718&variant_2=1719&variant_3=1720&variant_4=1&variant_5=1 | Fixed postfor casting in concrete | End post | hot-dip galvanized | ||||
| 448_81 | 1000 | 500 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
7.55 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1718&variant_2=1728&variant_3=1720&variant_4=1&variant_5=1 | Fixed postfor casting in concrete | Middle post | hot-dip galvanized | ||||
| 448_815 | 1000 | 250 | 48 | Hot-dip galvanized, RAL fan | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
7.66 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1718&variant_2=1727&variant_3=1720&variant_4=1&variant_5=1 | Fixed postfor casting in concrete | Corner post | hot-dip galvanized | ||||

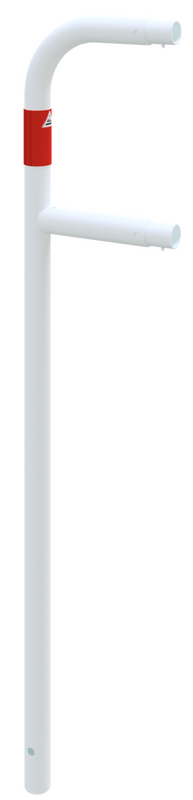

| 448_80B | 1000 | 250 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized and powder coated |
5.47 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1718&variant_2=1719&variant_3=1726&variant_4=1&variant_5=1 | Fixed postfor casting in concrete | End post | hot-dip galvanized and white coatedwith red reflecting stripes | ||||
| 448_81B | 1000 | 500 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized and powder coated |
7.56 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1718&variant_2=1728&variant_3=1726&variant_4=1&variant_5=1 | Fixed postfor casting in concrete | Middle post | hot-dip galvanized and white coatedwith red reflecting stripes | ||||
| 448_815B | 1000 | 250 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized and powder coated |
7.67 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1718&variant_2=1727&variant_3=1726&variant_4=1&variant_5=1 | Fixed postfor casting in concrete | Corner post | hot-dip galvanized and white coatedwith red reflecting stripes | ||||

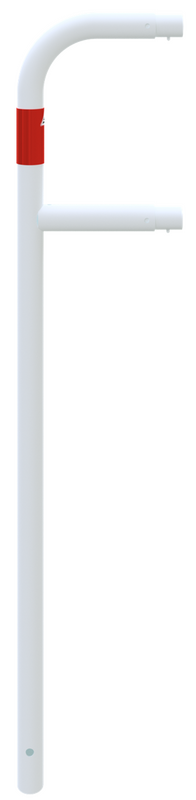

| 448_80P | 1000 | 250 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
4.99 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1723&variant_2=1719&variant_3=1720&variant_4=1&variant_5=1 | Fixed postto be fixed by plugs | End post | hot-dip galvanized | ||||
| 448_81P | 1000 | 500 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
7.08 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1723&variant_2=1728&variant_3=1720&variant_4=1&variant_5=1 | Fixed postto be fixed by plugs | Middle post | hot-dip galvanized | ||||
| 448_815P | 1000 | 250 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
7.2 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1723&variant_2=1727&variant_3=1720&variant_4=1&variant_5=1 | Fixed postto be fixed by plugs | Corner post | hot-dip galvanized | ||||
| 448_80PB | 1000 | 250 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized and powder coated |
5.01 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1723&variant_2=1719&variant_3=1726&variant_4=1&variant_5=1 | Fixed postto be fixed by plugs | End post | hot-dip galvanized and white coatedwith red reflecting stripes | ||||
| 448_81PB | 1000 | 500 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized and powder coated |
7.1 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1723&variant_2=1728&variant_3=1726&variant_4=1&variant_5=1 | Fixed postto be fixed by plugs | Middle post | hot-dip galvanized and white coatedwith red reflecting stripes | ||||
| 448_815PB | 1000 | 250 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized and powder coated |
7.21 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1723&variant_2=1727&variant_3=1726&variant_4=1&variant_5=1 | Fixed postto be fixed by plugs | Corner post | hot-dip galvanized and white coatedwith red reflecting stripes | ||||
| 448_42 | 500 | 48 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
1.14 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1721&variant_2=1724&variant_3=1720&variant_4=1&variant_5=1 | Cross barof steel tube | tube length: 500 mm | hot-dip galvanized | ||||
| 448_43 | 1000 | 48 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
2.28 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1721&variant_2=1722&variant_3=1720&variant_4=1&variant_5=1 | Cross barof steel tube | tube length: 1000 mm | hot-dip galvanized | ||||
| 448_44 | 1500 | 48 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
3.42 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1721&variant_2=1725&variant_3=1720&variant_4=1&variant_5=1 | Cross barof steel tube | tube length: 1500 mm | hot-dip galvanized | ||||
| 448_42B | 500 | 48 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized and powder coated |
1.15 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1721&variant_2=1724&variant_3=1726&variant_4=1&variant_5=1 | Cross barof steel tube | tube length: 500 mm | hot-dip galvanized and white coatedwith red reflecting stripes | ||||
| 448_43B | 1000 | 48 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized and powder coated |
2.31 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1721&variant_2=1722&variant_3=1726&variant_4=1&variant_5=1 | Cross barof steel tube | tube length: 1000 mm | hot-dip galvanized and white coatedwith red reflecting stripes | ||||
| 448_44B | 1500 | 48 | 48 | Hot-dip galvanized | material: S235 JR surface: hot dipped galvanized and powder coated |
3.47 | https://www.schake.com/en/products/urban-equipment/barrier-elements/railing-systems/protective-railing/v448_80.html?variant_1=1721&variant_2=1725&variant_3=1726&variant_4=1&variant_5=1 | Cross barof steel tube | tube length: 1500 mm | hot-dip galvanized and white coatedwith red reflecting stripes |
