Item number	Length (mm)	Width (mm)	Height (mm)		Technical specifications	Weight		variant_1	variant_2
40100F	1400	100	100	Hot-dip galvanized, RAL fan	material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461	16.41	https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/art-40100f	hot-dip galvanized	without eyelet
40100F+1	1417	100	100	Hot-dip galvanized, RAL fan		16.73	https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/art-40100f1	hot-dip galvanized	with 1 eyelet
40100F+2	1417	100	100	Hot-dip galvanized, RAL fan		16.76	https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/art-40100f2	hot-dip galvanized	with 2 eyelets
40100FB	1400	100	100	Hot-dip galvanized, RAL fan	material: S235 JR surface: hot dipped galvanized and powder coated	16.51	https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/art-40100fb	hot-dip galvanized and white coatedwith three red reflecting stripes	without eyelet
40100FB+1	1417	100	100	Hot-dip galvanized, RAL fan		16.73	https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/art-40100fb1	hot-dip galvanized and white coatedwith three red reflecting stripes	with 1 eyelet
40100FB+2	1417	100	100	Hot-dip galvanized, RAL fan		16.76	https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/art-40100fb2	hot-dip galvanized and white coatedwith three red reflecting stripes	with 2 eyelets

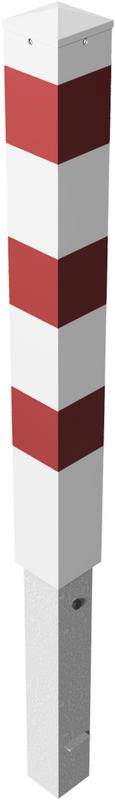

Barrier posts
steel tube 100 x 100 x 3 mm
removable,
with profile cylinder lock

Article number: 40100FB+2

Barrier posts
Square tube 100 x 100 x 3 mm
with welded steel cap
950 mm above ground
Removable, with triangular locking mechanism
acc. With DIN 3223, with self-engaging lock
with ground socket part-no. 470.10, approx. 500 mm below ground
