All variants of this product:
| Item number | Length (mm) | Width (mm) | Height (mm) | Designated purpose | Technical specifications | Weight | variant_1 | variant_2 | variant_3 | variant_4 | variant_5 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 470UV | 900 | 150 | 100 | Hot-dip galvanized, RAL fan | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
8.9 | https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/v470uv.html?variant_1=968&variant_2=969&variant_3=970&variant_4=1&variant_5=1 | to be fixed by plugswith base plate 100 x 150 mm | hot-dip galvanized | without eyelet | ||||
| 470UV+1 | 915 | 150 | 100 | Hot-dip galvanized, RAL fan | 8.93 | https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/v470uv.html?variant_1=968&variant_2=969&variant_3=973&variant_4=1&variant_5=1 | to be fixed by plugswith base plate 100 x 150 mm | hot-dip galvanized | with 1 eyelet | |||||
| 470UV+2 | 915 | 150 | 100 | Hot-dip galvanized, RAL fan | 8.96 | https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/v470uv.html?variant_1=968&variant_2=969&variant_3=974&variant_4=1&variant_5=1 | to be fixed by plugswith base plate 100 x 150 mm | hot-dip galvanized | with 2 eyelets | |||||

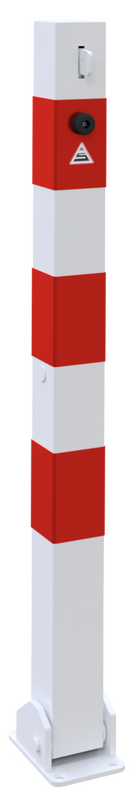

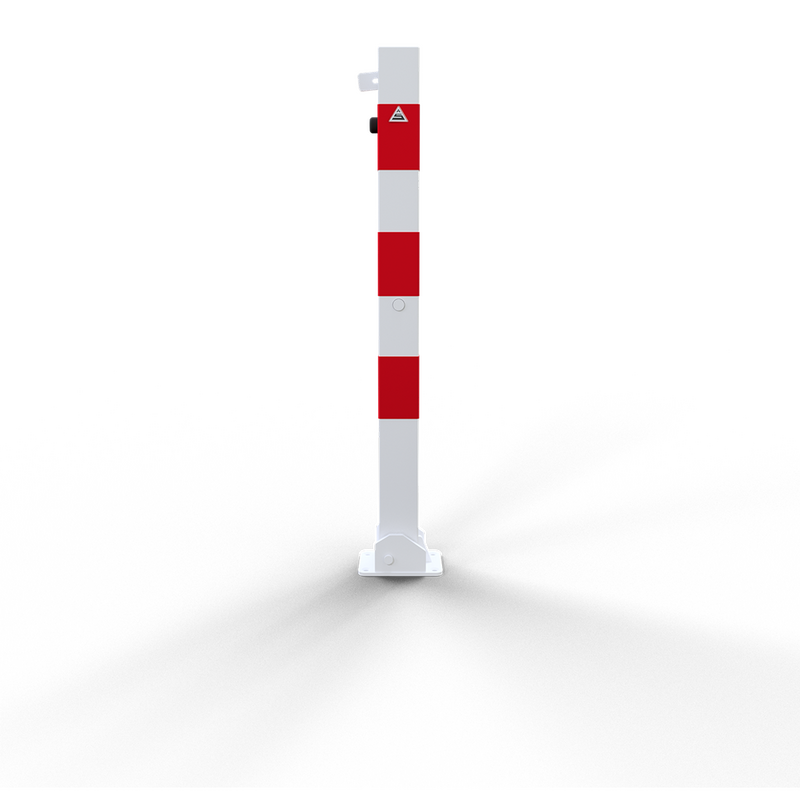

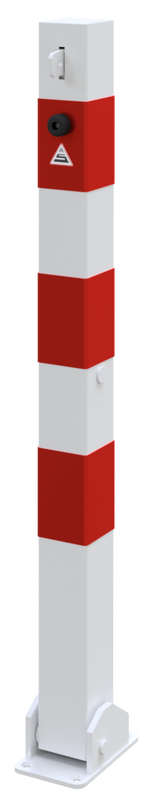

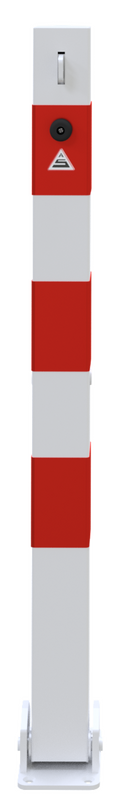

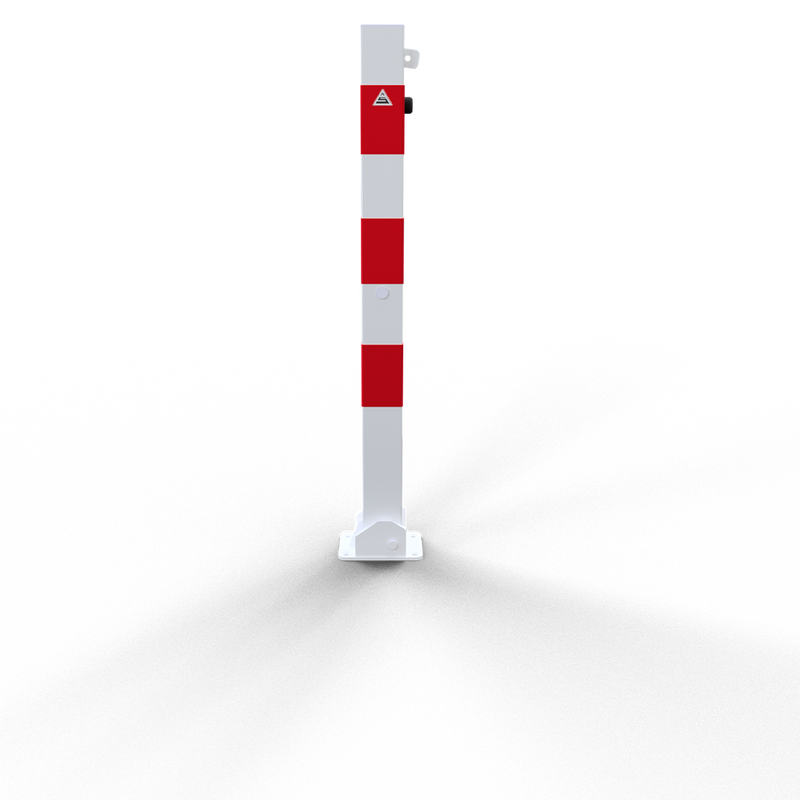

| 470UVB | 900 | 150 | 100 | Hot-dip galvanized, RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
8.9 | https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/v470uv.html?variant_1=968&variant_2=971&variant_3=970&variant_4=1&variant_5=1 | to be fixed by plugswith base plate 100 x 150 mm | hot-dip galvanized and white coatedwith three red reflecting stripes | without eyelet | ||||
| 470UVB+1 | 915 | 150 | 100 | Hot-dip galvanized, RAL fan | 8.93 | https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/v470uv.html?variant_1=968&variant_2=971&variant_3=973&variant_4=1&variant_5=1 | to be fixed by plugswith base plate 100 x 150 mm | hot-dip galvanized and white coatedwith three red reflecting stripes | with 1 eyelet | |||||
| 470UVB+2 | 915 | 150 | 100 | Hot-dip galvanized, RAL fan | 8.96 | https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/v470uv.html?variant_1=968&variant_2=971&variant_3=974&variant_4=1&variant_5=1 | to be fixed by plugswith base plate 100 x 150 mm | hot-dip galvanized and white coatedwith three red reflecting stripes | with 2 eyelets | |||||
| 470UVH | 1300 | 70 | 70 | Hot-dip galvanized, RAL fan | material: S235 JR surface: hot dipped galvanized acc. to DIN ISO 1461 |
11.2 | https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/v470uv.html?variant_1=972&variant_2=969&variant_3=970&variant_4=1&variant_5=1 | for casting in concretewith ground socket part-no. 470.60approx. 400 mm below ground | hot-dip galvanized | without eyelet | ||||
| 470UVHB | 1300 | 70 | 70 | Hot-dip galvanized, RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.2 | https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/70-mm-x-70-mm-100-mm-x-100-mm/v470uv.html?variant_1=972&variant_2=971&variant_3=970&variant_4=1&variant_5=1 | for casting in concretewith ground socket part-no. 470.60approx. 400 mm below ground | hot-dip galvanized and white coatedwith three red reflecting stripes | without eyelet |
