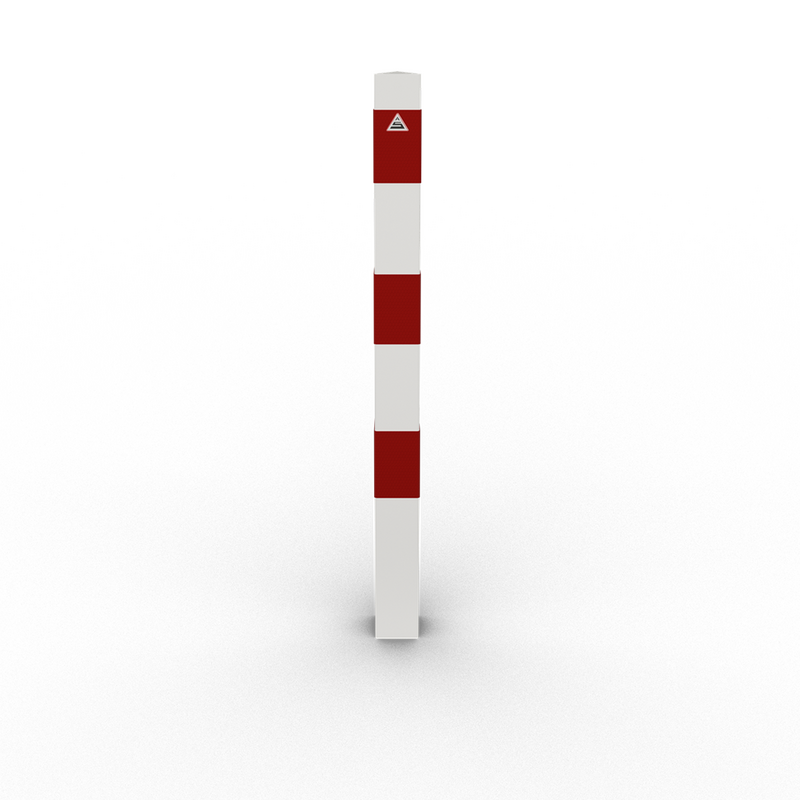

| 470FB_R2B |
1400 |
70 |
70 |
|
|
|
|
11.4 |
https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/post-configuration/art-470fb_r2b |
70 x 70 mm |
removable
self-engaging lock, incl. base rosette,
with hot-dip galvanized ground sleeve, approx. 400 mm below ground |
with triangular locking mechanism acc. with DIN 3223 |
|
|
| 476B_R2B |
1400 |
76 |
76 |
|
|
|
|
6.97 |
https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/post-configuration/art-476b_r2b |
Ø 76 mm |
stationary |
for casting in concrete
with ground anchor
total length: approx. 1300 mm |
|
|

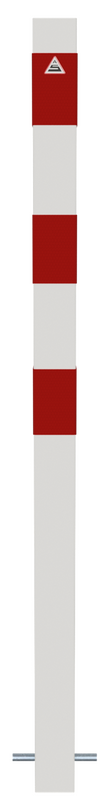

| 460B_R2B |
1300 |
60 |
60 |
|
|
|
|
4.98 |
https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/post-configuration/art-460b_r2b |
Ø 60 mm |
stationary |
for casting in concrete
with ground anchor
total length: approx. 1300 mm |
|
|
| 476PB_R2B |
900 |
150 |
100 |
|
|
|
|
5.13 |
https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/post-configuration/art-476pb_r2b |
Ø 76 mm |
stationary |
to be fixed by plugs
with base plate 100 x 150 mm |
|
|
| 476FB_R2B |
1300 |
76 |
76 |
|
|
|
|
9.83 |
https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/post-configuration/art-476fb_r2b |
Ø 76 mm |
removable
self-engaging lock, incl. base rosette,
with hot-dip galvanized ground sleeve, approx. 400 mm below ground |
with triangular locking mechanism acc. with DIN 3223 |
|
|

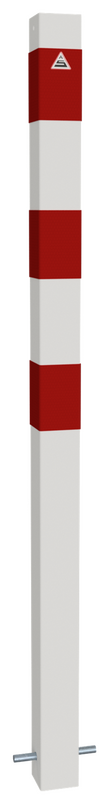

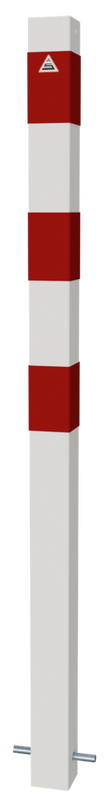

| 470B_R2B |
1300 |
70 |
70 |
|
|
|
|
7.25 |
https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/post-configuration/art-470b_r2b |
70 x 70 mm |
stationary |
for casting in concrete
with ground anchor
total length: approx. 1300 mm |
|
|
| 460FB_R2B |
1300 |
60 |
60 |
|
|
|
|
6.69 |
https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/post-configuration/art-460fb_r2b |
Ø 60 mm |
removable
self-engaging lock, incl. base rosette,
with hot-dip galvanized ground sleeve, approx. 400 mm below ground |
with triangular locking mechanism acc. with DIN 3223 |
|
|
| 470PB_R2B |
900 |
150 |
100 |
|
|
|
|
5.68 |
https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/post-configuration/art-470pb_r2b |
70 x 70 mm |
stationary |
to be fixed by plugs
with base plate 100 x 150 mm |
|
|
| 460PB_R2B |
900 |
150 |
100 |
|
|
|
|
4.07 |
https://www.schake.com/en/products/urban-equipment/barrier-posts/barrier-posts/post-configuration/art-460pb_r2b |
Ø 60 mm |
stationary |
to be fixed by plugs
with base plate 100 x 150 mm |
|
|
