All variants of this product:
| Item number | Length (mm) | Width (mm) | Height (mm) | Designated purpose | Technical specifications | Weight | variant_1 | variant_2 | variant_3 | variant_4 | variant_5 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

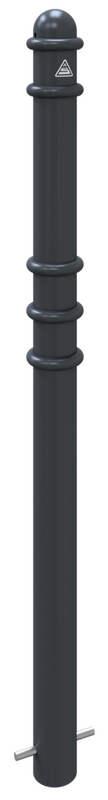

| 479B | 1300 | 76 | 76 | Hot-dip galvanized, RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
9.2 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=195&variant_2=196&variant_3=197&variant_4=1&variant_5=1 | stationary, for casting in concretewith ground anchor, total length approx. 1300 mm | without lock | without eyelet | ||||

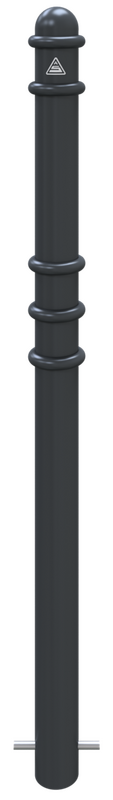

| 479B+1 | 1338 | 76 | 76 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite-grey (RAL 7016) |
9.23 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=195&variant_2=196&variant_3=203&variant_4=1&variant_5=1 | stationary, for casting in concretewith ground anchor, total length approx. 1300 mm | without lock | with 1 eyelet | ||||

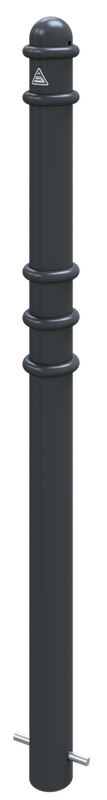

| 479B+2 | 1338 | 76 | 76 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite-grey (RAL 7016) |
9.26 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=195&variant_2=196&variant_3=204&variant_4=1&variant_5=1 | stationary, for casting in concretewith ground anchor, total length approx. 1300 mm | without lock | with 2 eyelets | ||||
| 479PB | 950 | 150 | 100 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
7.3 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=200&variant_2=196&variant_3=197&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without lock | without eyelet | ||||
| 479PB+1 | 950 | 150 | 100 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite-grey (RAL 7016) |
7.33 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=200&variant_2=196&variant_3=203&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without lock | with 1 eyelet | ||||
| 479PB+2 | 950 | 150 | 100 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite-grey (RAL 7016) |
7.36 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=200&variant_2=196&variant_3=204&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without lock | with 2 eyelets | ||||
| 479FB | 1350 | 76 | 76 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.9 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=198&variant_2=199&variant_3=197&variant_4=1&variant_5=1 | removable, self-engaging lockwith hot-dip galvanized ground socket part-no. 476.40approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | without eyelet | ||||
| 479FB+1 | 1350 | 76 | 76 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite-grey (RAL 7016) |
11.93 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=198&variant_2=199&variant_3=203&variant_4=1&variant_5=1 | removable, self-engaging lockwith hot-dip galvanized ground socket part-no. 476.40approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 1 eyelet | ||||
| 479FB+2 | 1350 | 76 | 76 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite-grey (RAL 7016) |
11.96 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=198&variant_2=199&variant_3=204&variant_4=1&variant_5=1 | removable, self-engaging lockwith hot-dip galvanized ground socket part-no. 476.40approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 2 eyelets | ||||
| 479FUB | 950 | 150 | 100 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
9.2 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=201&variant_2=199&variant_3=197&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with triangular locking mechanism acc. with DIN 3223 | without eyelet | ||||
| 479FUB+1 | 950 | 150 | 100 | RAL fan | 9.23 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=201&variant_2=199&variant_3=203&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with triangular locking mechanism acc. with DIN 3223 | with 1 eyelet | |||||
| 479FUB+2 | 950 | 150 | 100 | RAL fan | 9.26 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=201&variant_2=199&variant_3=204&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with triangular locking mechanism acc. with DIN 3223 | with 2 eyelets | |||||
| 479FUHB | 1350 | 76 | 76 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=202&variant_2=199&variant_3=197&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized ground socket part-no. 470.60approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | without eyelet | ||||
| 479FUHB+1 | 1350 | 76 | 76 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=202&variant_2=199&variant_3=203&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized ground socket part-no. 470.60approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 1 eyelet | ||||
| 479FUHB+2 | 1350 | 76 | 76 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v479b.html?variant_1=202&variant_2=199&variant_3=204&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized ground socket part-no. 470.60approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 2 eyelets |
