All variants of this product:
| Item number | Length (mm) | Width (mm) | Height (mm) | Designated purpose | Technical specifications | Weight | variant_1 | variant_2 | variant_3 | variant_4 | variant_5 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

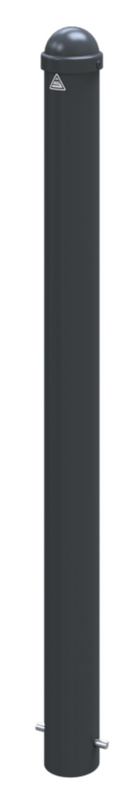

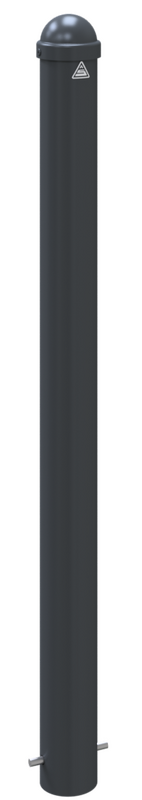

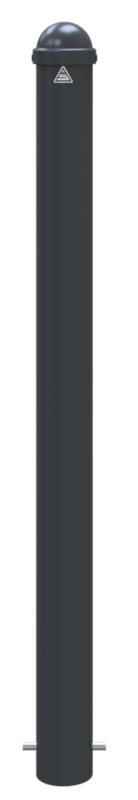

| 496B | 1300 | 102 | 102 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
9.4 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1020&variant_2=1019&variant_3=1&variant_4=1&variant_5=1 | stationary, for casting in concrete with ground anchor, total length approx. 1300 mm | without eyelet | |||||
| 496B+1 | 1352 | 102 | 102 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite grey (RAL 7016) |
9.43 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1020&variant_2=1022&variant_3=1&variant_4=1&variant_5=1 | stationary, for casting in concrete with ground anchor, total length approx. 1300 mm | with 1 eyelet | |||||
| 496B+2 | 1352 | 102 | 102 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite grey (RAL 7016) |
9.46 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1020&variant_2=1021&variant_3=1&variant_4=1&variant_5=1 | stationary, for casting in concrete with ground anchor, total length approx. 1300 mm | with 2 eyelets | |||||
| 496FB | 950 | 102 | 102 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
13.9 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1018&variant_2=1019&variant_3=1&variant_4=1&variant_5=1 | removable, with triangular locking mechanism acc. with DIN 3223, self-engaging lockwith hot-dip galvanized ground socket part-no. 470.10 | without eyelet | |||||
| 496FB+1 | 800 | 102 | 160 | RAL fan | material: S235 JR surface: hot-dipped galvanized and powder coated |
13.93 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1018&variant_2=1022&variant_3=1&variant_4=1&variant_5=1 | removable, with triangular locking mechanism acc. with DIN 3223, self-engaging lockwith hot-dip galvanized ground socket part-no. 470.10 | with 1 eyelet | |||||
| 496FB+2 | 950 | 102 | 102 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite grey (RAL 7016) |
13.96 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1018&variant_2=1021&variant_3=1&variant_4=1&variant_5=1 | removable, with triangular locking mechanism acc. with DIN 3223, self-engaging lockwith hot-dip galvanized ground socket part-no. 470.10 | with 2 eyelets | |||||
| 496ZB | 950 | 102 | 102 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
13.9 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1023&variant_2=1019&variant_3=1&variant_4=1&variant_5=1 | removable, with profile cylinder lock, three keys, self-engaging lockwith hot-dip galvanized ground socket part-no. 470.10 | without eyelet | |||||
| 496PB+1 | 1300 | 102 | 102 | 8 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1598&variant_2=1022&variant_3=1&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | with 1 eyelet | |||||||
| 496PB | 1300 | 102 | 102 | 8 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1598&variant_2=1019&variant_3=1&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without eyelet | |||||||
| 496PB+2 | 1300 | 102 | 102 | 8 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/helmet-head/v496b.html?variant_1=1598&variant_2=1021&variant_3=1&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | with 2 eyelets |
