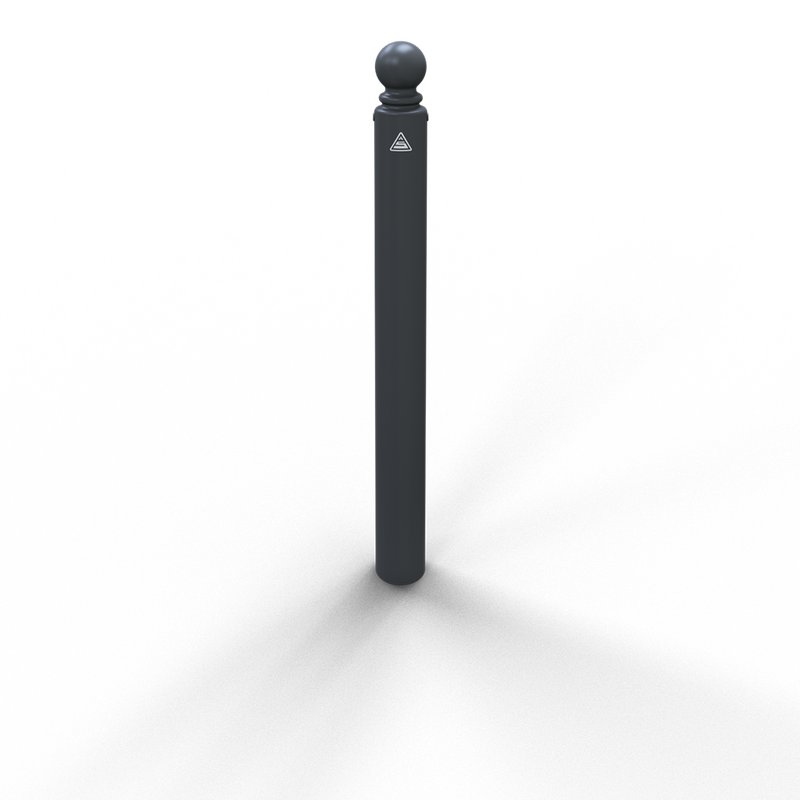

All variants of this product:
| Item number | Length (mm) | Width (mm) | Height (mm) | Designated purpose | Technical specifications | Weight | variant_1 | variant_2 | variant_3 | variant_4 | variant_5 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 485B | 1300 | 82 | 82 | Hot-dip galvanized, RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
9.8 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=45&variant_2=46&variant_3=47&variant_4=1&variant_5=1 | stationary, for casting in concretewith ground anchor, total length approx. 1300 mm | without lock | without eyelet | ||||
| 485B+1 | 1309 | 82 | 82 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated, color: RAL 9005 matt (jet black) |
9.83 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=45&variant_2=46&variant_3=52&variant_4=1&variant_5=1 | stationary, for casting in concretewith ground anchor, total length approx. 1300 mm | without lock | with 1 eyelet | ||||
| 485B+2 | 1309 | 82 | 82 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated, color: RAL 9005 matt (jet black) |
9.86 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=45&variant_2=46&variant_3=44&variant_4=1&variant_5=1 | stationary, for casting in concretewith ground anchor, total length approx. 1300 mm | without lock | with 2 eyelets | ||||
| 485PB | 900 | 150 | 100 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
7.2 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=48&variant_2=46&variant_3=47&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without lock | without eyelet | ||||
| 485PB+1 | 900 | 150 | 100 | RAL fan | 7.23 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=48&variant_2=46&variant_3=52&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without lock | with 1 eyelet | |||||
| 485PB+2 | 900 | 150 | 100 | RAL fan | 7.26 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=48&variant_2=46&variant_3=44&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without lock | with 2 eyelets | |||||
| 485FB | 1400 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
12.9 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=49&variant_2=43&variant_3=47&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with triangular locking mechanism acc. with DIN 3223 | without eyelet | ||||
| 485FB+1 | 1400 | 82 | 82 | RAL fan | 13.03 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=49&variant_2=43&variant_3=52&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 1 eyelet | |||||
| 485FB+2 | 1400 | 82 | 82 | RAL fan | 13.06 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=49&variant_2=43&variant_3=44&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 2 eyelets | |||||
| 485FUB | 900 | 150 | 100 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
9 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=51&variant_2=43&variant_3=47&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with triangular locking mechanism acc. with DIN 3223 | without eyelet | ||||
| 485FUB+1 | 900 | 150 | 100 | RAL fan | 9.03 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=51&variant_2=43&variant_3=52&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with triangular locking mechanism acc. with DIN 3223 | with 1 eyelet | |||||
| 485FUB+2 | 900 | 150 | 100 | RAL fan | 9.06 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=51&variant_2=43&variant_3=44&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with triangular locking mechanism acc. with DIN 3223 | with 2 eyelets | |||||
| 485FUHB | 1300 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.3 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=42&variant_2=43&variant_3=47&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized groundsocket part-no. 470.60, approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | without eyelet | ||||
| 485FUHB+1 | 1300 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.3 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=42&variant_2=43&variant_3=52&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized groundsocket part-no. 470.60, approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 1 eyelet | ||||
| 485FUHB+2 | 1300 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.3 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=42&variant_2=43&variant_3=44&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized groundsocket part-no. 470.60, approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 2 eyelets | ||||
| 485ZB | 1400 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
13.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=49&variant_2=50&variant_3=47&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with Euro profile cylinder lock and three keys | without eyelet | ||||
| 485ZB+1 | 1400 | 82 | 82 | RAL fan | 13.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=49&variant_2=50&variant_3=52&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with Euro profile cylinder lock and three keys | with 1 eyelet | |||||
| 485ZB+2 | 1400 | 82 | 82 | RAL fan | 13.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=49&variant_2=50&variant_3=44&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with Euro profile cylinder lock and three keys | with 2 eyelets | |||||
| 485UZB | 900 | 150 | 100 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
10.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=51&variant_2=50&variant_3=47&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with Euro profile cylinder lock and three keys | without eyelet | ||||
| 485UZB+1 | 900 | 150 | 100 | RAL fan | 10.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=51&variant_2=50&variant_3=52&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with Euro profile cylinder lock and three keys | with 1 eyelet | |||||
| 485UZB+2 | 900 | 150 | 100 | RAL fan | 10.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=51&variant_2=50&variant_3=44&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with Euro profile cylinder lock and three keys | with 2 eyelets | |||||
| 485UZHB | 1300 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
13 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=42&variant_2=50&variant_3=47&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized groundsocket part-no. 470.60, approx. 400 mm below ground | with Euro profile cylinder lock and three keys | without eyelet | ||||
| 485UZHB+1 | 1300 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
13 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=42&variant_2=50&variant_3=52&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized groundsocket part-no. 470.60, approx. 400 mm below ground | with Euro profile cylinder lock and three keys | with 1 eyelet | ||||
| 485UZHB+2 | 1300 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
13 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/spherical-head/v485b.html?variant_1=42&variant_2=50&variant_3=44&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized groundsocket part-no. 470.60, approx. 400 mm below ground | with Euro profile cylinder lock and three keys | with 2 eyelets |
