All variants of this product:
| Item number | Length (mm) | Width (mm) | Height (mm) | Designated purpose | Technical specifications | Weight | variant_1 | variant_2 | variant_3 | variant_4 | variant_5 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

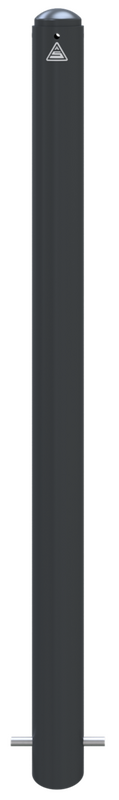

| 480B | 1300 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
9.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=274&variant_2=275&variant_3=276&variant_4=1&variant_5=1 | stationary, for casting in concretewith ground anchor, total length approx. 1300 mm | without lock | without eyelet | ||||

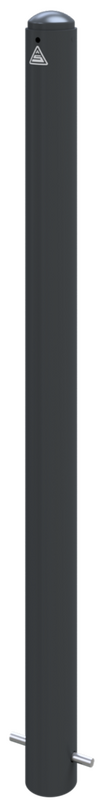

| 480B+1 | 1228 | 82 | 82 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite grey (RAL 7016) |
9.53 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=274&variant_2=275&variant_3=284&variant_4=1&variant_5=1 | stationary, for casting in concretewith ground anchor, total length approx. 1300 mm | without lock | with 1 eyelet | ||||

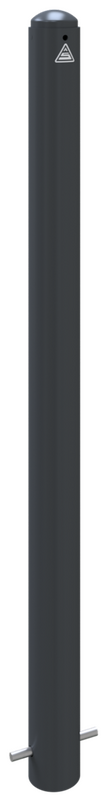

| 480B+2 | 1228 | 82 | 82 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite grey (RAL 7016) |
9.56 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=274&variant_2=275&variant_3=281&variant_4=1&variant_5=1 | stationary, for casting in concretewith ground anchor, total length approx. 1300 mm | without lock | with 2 eyelets | ||||
| 480PB | 800 | 150 | 100 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
7.67 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=279&variant_2=275&variant_3=276&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without lock | without eyelet | ||||
| 480PB+1 | 934 | 150 | 100 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite grey (RAL 7016) |
9.53 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=279&variant_2=275&variant_3=284&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without lock | with 1 eyelet | ||||
| 480PB+2 | 934 | 150 | 100 | RAL fan | material: S235 JR surface: hot-dip galvanized and coated anthracite grey (RAL 7016) |
9.56 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=279&variant_2=275&variant_3=281&variant_4=1&variant_5=1 | stationary, to be fixed by plugswith base plate 100 x 150 mm | without lock | with 2 eyelets | ||||
| 480FB | 1300 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
12.8 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=277&variant_2=278&variant_3=276&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with triangular locking mechanism acc. with DIN 3223 | without eyelet | ||||
| 480FB+1 | 1310 | 82 | 82 | RAL fan | 12.83 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=277&variant_2=278&variant_3=284&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 1 eyelet | |||||
| 480FB+2 | 1310 | 82 | 82 | RAL fan | 12.86 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=277&variant_2=278&variant_3=281&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 2 eyelets | |||||
| 480FUB | 800 | 150 | 100 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
8.8 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=282&variant_2=278&variant_3=276&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with triangular locking mechanism acc. with DIN 3223 | without eyelet | ||||
| 480FUB+1 | 800 | 150 | 100 | RAL fan | 8.83 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=282&variant_2=278&variant_3=284&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with triangular locking mechanism acc. with DIN 3223 | with 1 eyelet | |||||
| 480FUB+2 | 800 | 150 | 100 | RAL fan | 8.86 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=282&variant_2=278&variant_3=281&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with triangular locking mechanism acc. with DIN 3223 | with 2 eyelets | |||||
| 480FUHB | 1200 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.2 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=283&variant_2=278&variant_3=276&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized ground socket part-no. 470.60approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | without eyelet | ||||
| 480FUHB+1 | 1200 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.2 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=283&variant_2=278&variant_3=284&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized ground socket part-no. 470.60approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 1 eyelet | ||||
| 480FUHB+2 | 1200 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
11.2 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=283&variant_2=278&variant_3=281&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized ground socket part-no. 470.60approx. 400 mm below ground | with triangular locking mechanism acc. with DIN 3223 | with 2 eyelets | ||||
| 480ZB | 1300 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
13 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=277&variant_2=280&variant_3=276&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with Euro profile cylinder lock and three keys | without eyelet | ||||
| 480UZB | 800 | 150 | 100 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
10 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=282&variant_2=280&variant_3=276&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with Euro profile cylinder lock and three keys | without eyelet | ||||
| 480ZB+1 | 1337 | 82 | 82 | RAL fan | 13 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=277&variant_2=280&variant_3=284&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with Euro profile cylinder lock and three keys | with 1 eyelet | |||||
| 480ZB+2 | 1337 | 82 | 82 | RAL fan | 13 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=277&variant_2=280&variant_3=281&variant_4=1&variant_5=1 | removable, self-engaging lockincluding ground rosette, with hot-dip galvanized groundsocket part-no. 470.10, approx. 500 mm below ground | with Euro profile cylinder lock and three keys | with 2 eyelets | |||||
| 480UZB+1 | 800 | 150 | 100 | RAL fan | 10 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=282&variant_2=280&variant_3=284&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with Euro profile cylinder lock and three keys | with 1 eyelet | |||||
| 480UZB+2 | 800 | 150 | 100 | RAL fan | 10 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=282&variant_2=280&variant_3=281&variant_4=1&variant_5=1 | foldable, self-engaging lockto be fixed by plugs, with base plate 100 x 150 mm | with Euro profile cylinder lock and three keys | with 2 eyelets | |||||
| 480UZHB | 1200 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
12.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=283&variant_2=280&variant_3=276&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized ground socket part-no. 470.60approx. 400 mm below ground | with Euro profile cylinder lock and three keys | without eyelet | ||||
| 480UZHB+1 | 1200 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
12.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=283&variant_2=280&variant_3=284&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized ground socket part-no. 470.60approx. 400 mm below ground | with Euro profile cylinder lock and three keys | with 1 eyelet | ||||
| 480UZHB+2 | 1200 | 82 | 82 | RAL fan | material: S235 JR surface: hot dipped galvanized and powder coated |
12.5 | https://www.schake.com/en/products/urban-equipment/ornamental-bollards/hemispherical-head/v480b.html?variant_1=283&variant_2=280&variant_3=281&variant_4=1&variant_5=1 | foldable, self-engaging lockfor casting in concrete, with hot-dip galvanized ground socket part-no. 470.60approx. 400 mm below ground | with Euro profile cylinder lock and three keys | with 2 eyelets |
