Item number	Length (mm)	Width (mm)	Height (mm)			Designated purpose	Technical specifications	Weight		variant_1	variant_2	variant_3	variant_4	variant_5
454_080PBE	835	806	200	Hot-dip galvanized			version: Hot-dip galvanized and black coated	15.28	https://www.schake.com/en/products/urban-equipment/outdoor-equipment/e-bike-charging-station/v454_080pbe.html?variant_1=3202&variant_2=1&variant_3=1&variant_4=1&variant_5=1	without lockable loading box
454_080PBEL	825	806	200	Hot-dip galvanized			version: hot-dip galvanized and black coated	17.84	https://www.schake.com/en/products/urban-equipment/outdoor-equipment/e-bike-charging-station/v454_080pbe.html?variant_1=3203&variant_2=1&variant_3=1&variant_4=1&variant_5=1	with lockable loading box

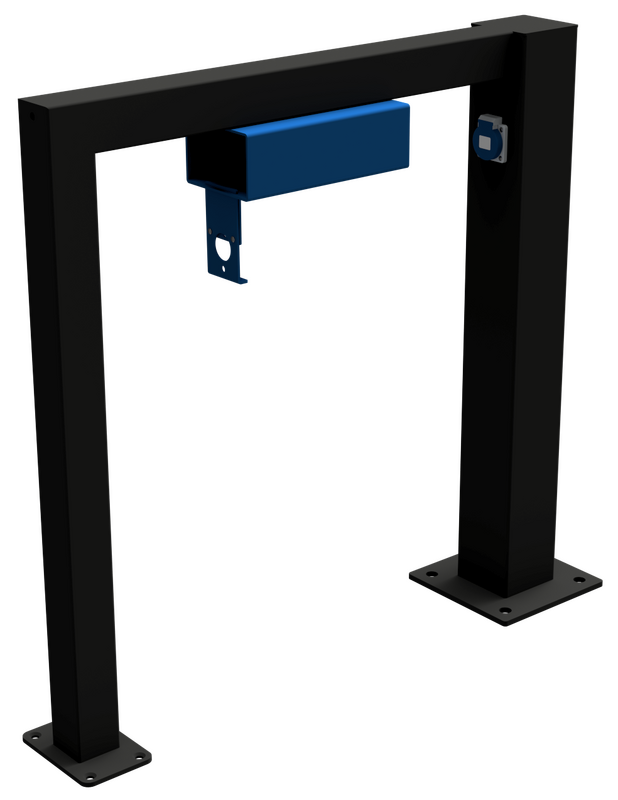

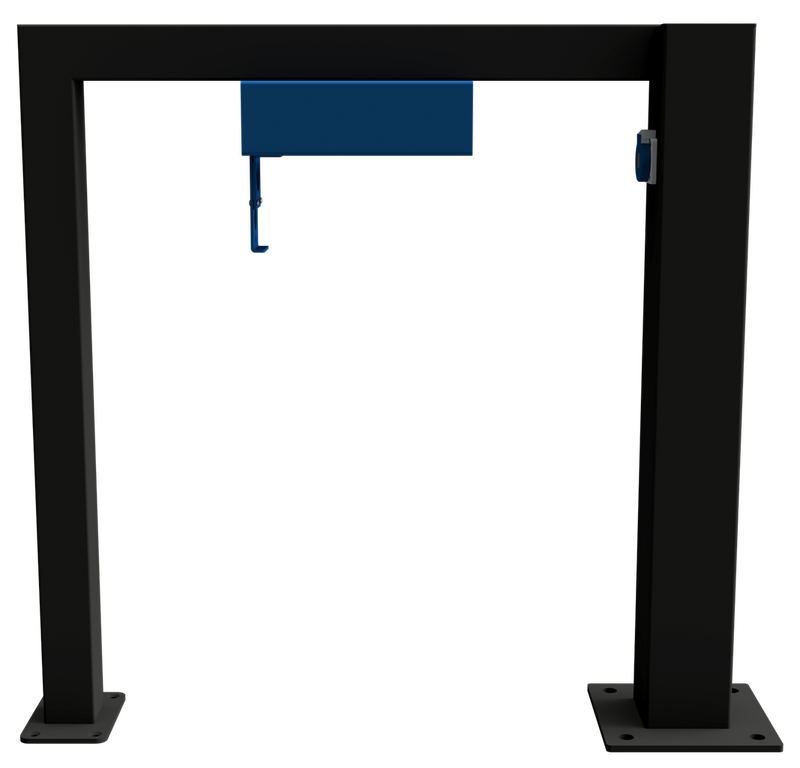

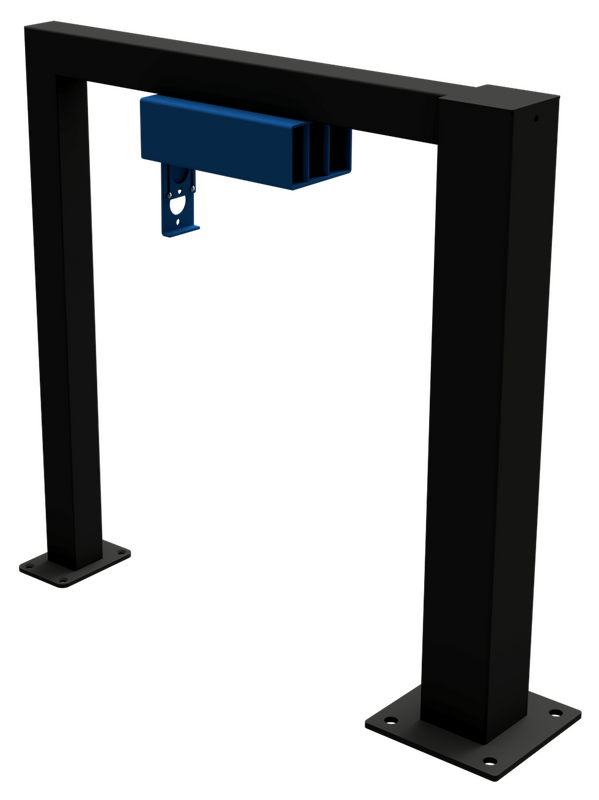

E-bike lean-on hoop
Single hoop

Article number: 454_080PBEL

E-bike lean-on hoop
Lean-on hoop made of hot-dip galvanized and powder-
coated steel square tube including IP 54 output
socket 230V with protective cover.
Single hoop

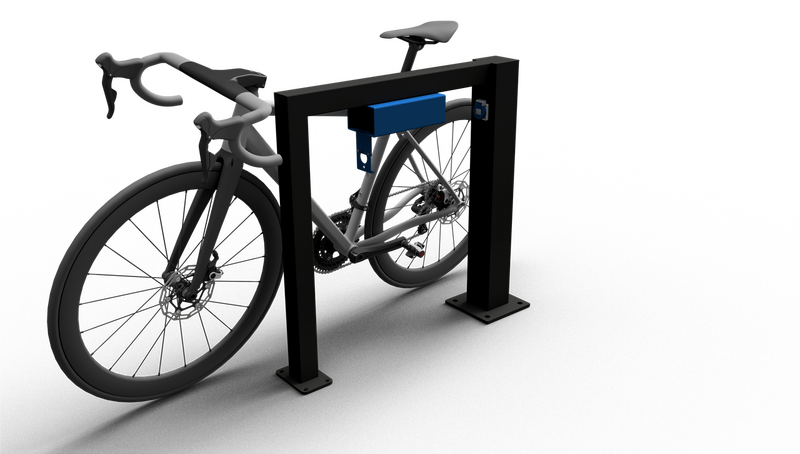

E-bike lean-on hoop with charging station
including IP 67 output socket 230V,
with lockable
charging box, as single hoop made of

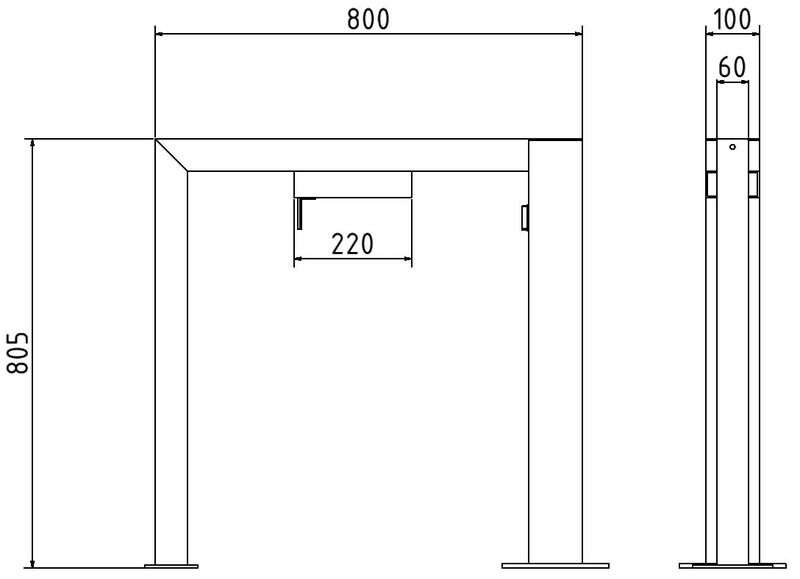

square tube 100x100mm / 60x60mm
width: 800mm
total height: 800mm,
with base plates for plugging down,
hot-dip galvanized and black coate
